45m3 Dump Trailer 3 Axle Tipper Trailer Truck for Coal

FOB Price: USD 13000.36 /Unit
Min.Order: 1 Unit
Supply Ability: 94 Unit
Delivery time： 23 days

Product Description

45m3 Dump Trailer 3 Axle Tipper Trailer Truck for Coal

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.

We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.

45m3 Dump Trailer 3 Axle Tipper Trailer Truck for Coal

Dump semi trailer specification fyi,

Product Information
Product	Dump /Tipper trailer TIPPING TRAILER
Brand Name	SINOHTC Brand
Model Number	HTC9480BGZX
Announcement (batch)	232
Place of Origin	Shandong province, China
Color	Any color will be available
Manufacturer	QINGDAO HETANCH TRUCK Co., Ltd
Product Specifications
Parameter
Outside Dimensions (LWH)	L:8000-12000W:2400-4000H:110-4000
Rated Load	30ton-100ton
Tare Weight	More than7000kgs
Wheelbase	8480+1310 (mm)
Hydraulic cylinder	HYVA or Jiuzhouzhongli
Running Gear
Tires	specification		12R22.5 ,11.00R20 or depends on customer
	No. of tires		8,12,16 or more than 20
	Brand		Double coin,Bridgestone,Tri-angle
	Spare tire carriers		2 or 1including ariser.
Axles	Brand :		FUWA (BPW German optional or JINSHENG)
	No. of axles:		2,3 4or more than 5
	Axle-load		13000kgs
Wheel rim	8units of 7.50-20 rim or 8.00
Suspension	Rigid suspension and air suspension
Pieces of leaf-spring	10/10/10
Brakes	brand			TKL brand
	Brake chamber			4 double chamber
	System			Dual line braking system /ABS
Under frame
Departure Angle	14
Front/RearOverhang	1670mm
Main Beam	material	I beam ,Q345B ,automatic submerged arc welded
	specification	Height is 500mm,upper plate is14mm,lower plate is 16mm,middle is 10mm
Cross Beam material	Q235B
Side beam	16# channel steel
Plate form	Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm)
King Pin	50# or 90#
Landing gear	Single side operation or double side operation, Static capacity 28Ton
Accessory	One tooling box with aset of standard trailer tool
Electrical
Voltage	24V
Receptacle	7 ways (7 wire harness)
Lights	Front corner marker lamp :red ;reflector lamp :white
	Side marker :orange
	Rear lamp :red; rear reflector :white; turn single lamp :orange
Other
Usage	The height of the cargo's carrying platform is 800-1290mm, is suitable For the transportation of the large and non-dismantled objects.
Other Specifications	The max height of the rear guard from ground is 420mm
Other Descriptions	The whole body of tipping trailers adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts avery strong unit by automatic submerged arc welding. frame using peen-forming processing.
Painting ,marking and side guard can according to the customer's requireme

Product Images

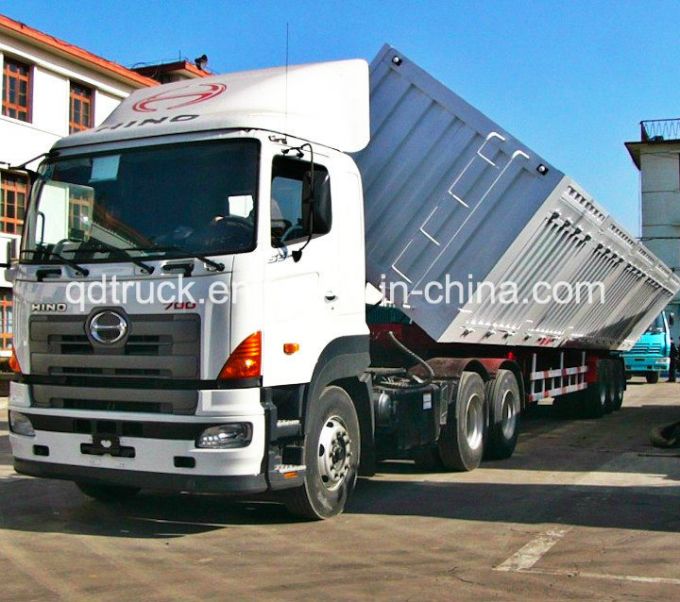

45m3 Dump Trailer 3 Axle Tipper Trailer Truck for Coal Images 1
