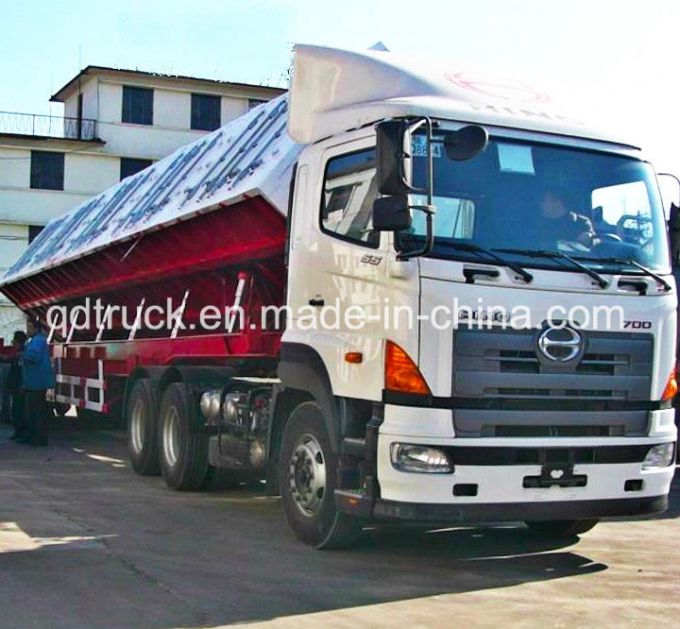

/Side or End Dump Truck Trailer, Tipping Trailer, Tipper Trailer, Tractor Hydraulic Cylinder Dump Tra
- USD 13000.35 /Unit
- 1 Unit
- 57 Unit
- 11 days
Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
Dump semi trailer specification fyi,
Product Information | |||||
Product | Dump /Tipper trailer | ||||
Brand Name | SINOHTC Brand | ||||
Model Number | HTC9480BGZX | ||||
Announcement (batch) | 232 | ||||
Place of Origin | Shandong province, China | ||||
Color | Any color will be available | ||||
Manufacturer | QINGDAO HETANCH TRUCK Co., Ltd | ||||
Product Specifications | |||||
Parameter | |||||
Outside Dimensions (L*W*H) | L:8000-12000W:2400-4000H:110-4000 | ||||
Rated Load | 30ton-100ton | ||||
Tare Weight | More than7000kgs | ||||
Wheelbase | 8480+1310 (mm) | ||||
Hydraulic cylinder | HYVA or Jiuzhouzhongli | ||||
Running Gear | |||||
Tires | specification | 12R22.5 ,11.00R20 or depends on customer | |||
No. of tires | 8,12,16 or more than 20 | ||||
Brand | Double coin,Bridgestone,Tri-angle | ||||
Spare tire carriers | 2 or 1including ariser. | ||||
Axles | Brand : | FUWA (BPW German optional or JINSHENG) | |||
No. of axles: | 2,3 4or more than 5 | ||||
Axle-load | 13000kgs | ||||
Wheel rim | 8units of 7.50-20 rim or 8.00 | ||||
Suspension | Rigid suspension and air suspension | ||||
Pieces of leaf-spring | 10/10/10 | ||||
Brakes | brand | TKL brand | |||
Brake chamber | 4 double chamber | ||||
System | Dual line braking system /ABS | ||||
Under frame | |||||
Departure Angle | 14 | ||||
Front/RearOverhang | 1670mm | ||||
Main Beam | material | I beam ,Q345B ,automatic submerged arc welded | |||
specification | Height is 500mm,upper plate is14mm,lower plate is 16mm,middle is 10mm | ||||
Cross Beam material | Q235B | ||||
Side beam | 16# channel steel | ||||
Plate form | Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm) | ||||
King Pin | 50# or 90# | ||||
Landing gear | Single side operation or double side operation, Static capacity 28Ton | ||||
Accessory | One tooling box with aset of standard trailer tool | ||||
Electrical | |||||
Voltage | 24V | ||||
Receptacle | 7 ways (7 wire harness) | ||||
Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
Side marker :orange | |||||
Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||
Other | |||||
Usage | The height of the cargo's carrying platform is 800-1290mm, is suitable For the transportation of the large and non-dismantled objects. | ||||
Other Specifications | The max height of the rear guard from ground is 420mm | ||||
Other Descriptions | The whole body of tipping trailers adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts avery strong unit by automatic submerged arc welding. frame using peen-forming processing. | ||||
Painting ,marking and side guard can according to the customer's requireme | |||||
-
