80 Ton Tri-Axle Tipping Trailer

  • 80 Ton Tri-Axle Tipping Trailer
  • USD 12000.28 /Unit
  • 1 Unit
  • 68 Unit
  • 24 days
Product Description
80 Ton Tri-Axle Tipping Trailer

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.


We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.

We can supply various trailer, such as flatbed trailer, container trailer, goose neck trailer, lowbed trailer, oil tank trailer, cement tank trailer, LPG tank trailer, dump trailer, tipper trailer, van trailer, cargo trailer, skeletal trailer, skeleton trailer, semi trailer, semi-trailer, tri-axle tipper trailer and so on
80 Ton Tri-Axle Tipping Trailer
80 Ton Tri-Axle Tipping Trailer

1. Use: Truck Trailer
2. Type: Semi-Trailer
3. Material: Steel
4. Certification: ISO9002
5. Size: 13X2.3X1.8 METER

Place of Origin: China (Mainland)
Brand Name: HTC
Payload: Large
Components: Trailer Axles
Max Payload: 80Tons

A) Suspension system: Mechanical suspension
B) Axle: FUWA 13 Tons
C) Tire: 10.00-20/11.00-20, 11R20.11R22.5, China famous brand;
D) Chassis: High-tensile steel
E) Surface preparation: Shot blast.
80 Ton Tri-Axle Tipping Trailer
80 Ton Tri-Axle Tipping Trailer
80 Ton Tri-Axle Tipping Trailer
80 Ton Tri-Axle Tipping Trailer

Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Typeside tipping trailer
Shipping termsShipping bulk cargo
Weight
Tare weight8680kg--12500k
Loading capacity60t_80t
Axle weight load13t/16t
Specification
Axle number3
Axle specsFuwa /hj /bpw
SuspensionCommon mechanical suspension
Wheel11.00R22.5/12.00R22.5 vacuum tire/triangle or double cone brand
King pinJOST 50#/90# traction pin
Dimensions (L*W*H)14600*2550*3930,3730,3530mm
14450*2350*2700,2500,2300
Support legs28tons JOST D200
Rim8.25*22.5/9.00*22.5 vacunnm tire zhengxing brand
Wheelbase8280+1310+1310
Steel spring10/10/10 pieces per axles
Twist locks4 pieces
Tire
Tire numberCan be choose freely
Spare tire carriers2/4 pieces
frame
material of main beamThe height of the beam is 450/500 mm.upper plate is 14mm.down plate is 8mm.if choose the SSAB high stress steel .the uper and down plate is 8mm .middle plate is 5mm.side board thickness is 1.2/2.3 mm with 28pieces lock bar
Platform plate3mm diamond /flat platform
Brake
BrakeKemi brand of china
Brake chamberFour double and two single chamber (TKL brand )
ABS systemWithout
Electrical
Voltage24v
Receptacle7 ways(7wire harness)
Product Images

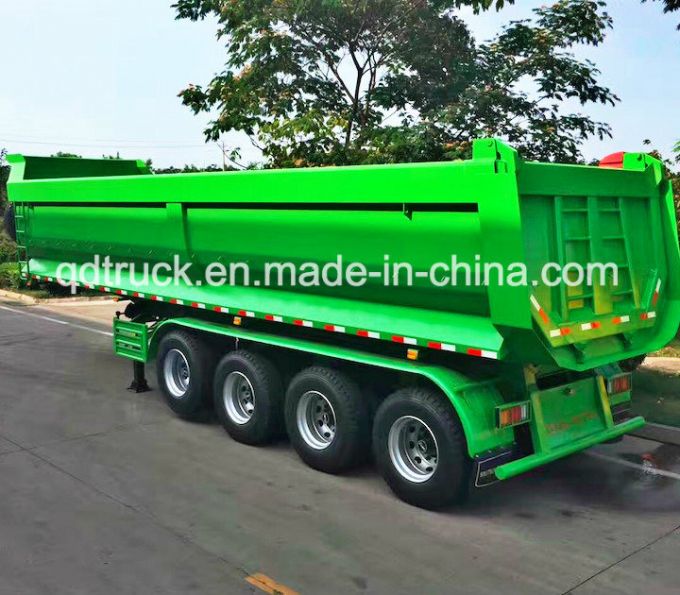

80 Ton Tri-Axle Tipping Trailer Images 1
