/100-200 tons Heavy Duty Multi axle Hydraulic Modular Trailer
- USD 169000.56 /Unit
- 1 Unit
- 93 Unit
- 23 days
Product Description

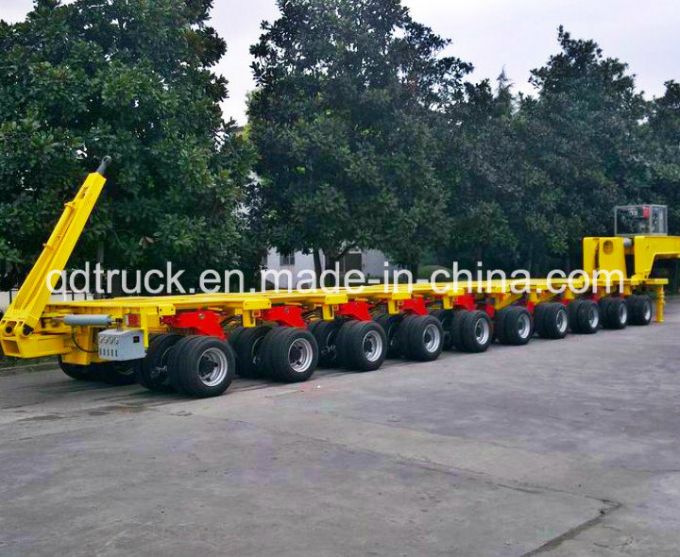

100-200 tons Heavy Duty Multi axle Hydraulic Modular Trailer
Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
100-200 ton multi axle low bed heavy duty semi trailer
Lowbed Trailer, low bed semi Trailer
Large low bed Semi Trailer For Transport is specially designed for extremely long, wide, high, heavy-duty transport vehicles. It can be lifted forward and backward with rear wheel steering. Under the situation that the cargo is bundled with the truck body strongly and effectively, the speed limit can be up to25KM / h, and the maximum load allowable be150 tons.It can be specially designed and manufactured according to the particular transport requirements of customers.
The center platform can be vertically pulled by 6 meters (The withdrawing beam inside can be customized according to the length of the loaded tank), the platform can be lifted up and down,with lifting height 0-500mm; It is only suitable to transport goods which itself has sufficient rigidity, and the goods must be bundled with the truck body; The height of tractor saddle surface required is about 1800mm.
Dimension(mm) L*W*H: 17500x3000X1180(MM)
Kin Pin Plate Height (mm) H1350
Axle space(mm) 1310mm
Tare weight 15500KGS
Payload 200000KGS
G. V. W. R. 215500KGS
Landing gear Two speed manual operation type with sand shoe
Kingpin 3.5"Bolted type
Brake system Dual line pneumatic brake system. WABCO brake valve.
ABS (option)
Brake chamber Type 30/30 spring brake chamber
Suspension Spring suspension
Axle FUWA square axle, 13 ton capacity/set,
Tire 8, 25R20 8PCS
Rim 6.5-20 8 PCS
Tool box 1
Spare tire carrier 2 Units
Floor 4mmchecked plate
Painting As customer request.
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company and SINOTRUK. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We also have cooperated several times with the third party named TCI from UK. They can inspect the trucks and trailers producing and shipping after getting your authorization.We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
Heavy duty multi-axle modular lowbed trailer
We can supply various trailer, such as flatbed trailer, container trailer, goose neck trailer, lowbed trailer, oil tank trailer, cement tank trailer, LPG tank trailer, dump trailer, tipper trailer, van trailer, cargo trailer, skeletal trailer, skeleton trailer, semi trailer, 1 line 2 axles low bed semi-trailer.
Low bed semi trailer, 70 tons load
Low bed trailer, four axles, two lines
Machinery trailer, JOST landing gear and king pin
Tare Weight: 13000 kg
Overall Length: 12010 mm
Flat bed length: 8000 mm
Overall Width: 3100 (folded)/3500 mm (extended)
Overall Height: 1706 mm
Payload: 60000 kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam & Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, Height 500mm, Bottom Flange 16mm, width 140mm.
Axle and Suspension: Two line/four axles mechanism, loads above 60 tons
Floor: 3 mmchecker plate
Ramp: Mechanical spring ramp
Leaf Spring: Standard Leaf spring for low bed trailer
King Pin JOST brand 2" Bolt-in King Pin
Landing Gear: JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim: 6.5V20 wheel rim 16 PCS
Tire: 8.25R20 all steel meridian tire 16 PCS
Spare Tire: One set of spare tire including a carrier
Braking System: WABCO RE 4 relay valve; T30/30 and T30 Spring brake chamber; 40L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories: One standard tool box.
Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
100-200 ton multi axle low bed heavy duty semi trailer
Lowbed Trailer, low bed semi Trailer
Large low bed Semi Trailer For Transport is specially designed for extremely long, wide, high, heavy-duty transport vehicles. It can be lifted forward and backward with rear wheel steering. Under the situation that the cargo is bundled with the truck body strongly and effectively, the speed limit can be up to25KM / h, and the maximum load allowable be150 tons.It can be specially designed and manufactured according to the particular transport requirements of customers.
The center platform can be vertically pulled by 6 meters (The withdrawing beam inside can be customized according to the length of the loaded tank), the platform can be lifted up and down,with lifting height 0-500mm; It is only suitable to transport goods which itself has sufficient rigidity, and the goods must be bundled with the truck body; The height of tractor saddle surface required is about 1800mm.
Dimension(mm) L*W*H: 17500x3000X1180(MM)
Kin Pin Plate Height (mm) H1350
Axle space(mm) 1310mm
Tare weight 15500KGS
Payload 200000KGS
G. V. W. R. 215500KGS
Landing gear Two speed manual operation type with sand shoe
Kingpin 3.5"Bolted type
Brake system Dual line pneumatic brake system. WABCO brake valve.
ABS (option)
Brake chamber Type 30/30 spring brake chamber
Suspension Spring suspension
Axle FUWA square axle, 13 ton capacity/set,
Tire 8, 25R20 8PCS
Rim 6.5-20 8 PCS
Tool box 1
Spare tire carrier 2 Units
Floor 4mmchecked plate
Painting As customer request.
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company and SINOTRUK. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We also have cooperated several times with the third party named TCI from UK. They can inspect the trucks and trailers producing and shipping after getting your authorization.We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
Heavy duty multi-axle modular lowbed trailer
We can supply various trailer, such as flatbed trailer, container trailer, goose neck trailer, lowbed trailer, oil tank trailer, cement tank trailer, LPG tank trailer, dump trailer, tipper trailer, van trailer, cargo trailer, skeletal trailer, skeleton trailer, semi trailer, 1 line 2 axles low bed semi-trailer.
Low bed semi trailer, 70 tons load
Low bed trailer, four axles, two lines
Machinery trailer, JOST landing gear and king pin
Tare Weight: 13000 kg
Overall Length: 12010 mm
Flat bed length: 8000 mm
Overall Width: 3100 (folded)/3500 mm (extended)
Overall Height: 1706 mm
Payload: 60000 kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam & Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, Height 500mm, Bottom Flange 16mm, width 140mm.
Axle and Suspension: Two line/four axles mechanism, loads above 60 tons
Floor: 3 mmchecker plate
Ramp: Mechanical spring ramp
Leaf Spring: Standard Leaf spring for low bed trailer
King Pin JOST brand 2" Bolt-in King Pin
Landing Gear: JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim: 6.5V20 wheel rim 16 PCS
Tire: 8.25R20 all steel meridian tire 16 PCS
Spare Tire: One set of spare tire including a carrier
Braking System: WABCO RE 4 relay valve; T30/30 and T30 Spring brake chamber; 40L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories: One standard tool box.
Lowbed TrailerSpecification |
Specification: | |
Tareweight | 37,000kg |
Size(LxWxH) | 58000x3000x(800-1200) |
Payload | 206,000kg |
Themaxsteeringangle | 45º |
StandardConfigurations: | |
| 1.Axle | 10tonFuwa,8-lineand16-axle |
2.Suspension | Hydraulicsteeringsuspension |
3.Kingpin | 2",boltontype |
4.Landinggear | 28ton,Twospeeds |
| 5.Tire | 215/75R17.5,64units |
6.Rim | 6.0-17.5,64units |
7.Brakingsystem | Gladhandvavle,Wabcorelayvavle,30/30doublebrakechambersonrealaxle, 30singlechambersonotheraxles |
8.ElectricalSystem | Dualcircuit,7-waysplitpinreceptacleplug,LEDlight |
| 9.ABS | None |
10.Painting | Blastingsandbeforepainting,onecoatprimerandtwocoatfinishpainting, coloursuppliedbycustomer |
11.Mudguard | Plasticorsteel |
| 12.Others | 1toolbox,1wheelcarrier,excludingsparewheel |
| OptionalConfigurations: | |
| 1.Airsuspension | firestoneorgoodyear;Chinesebrand |
2.Liftaxlesystem | |
| 3.Laderoperation: | Hydraulic |
| 4.Axle | BPW12 ton |
