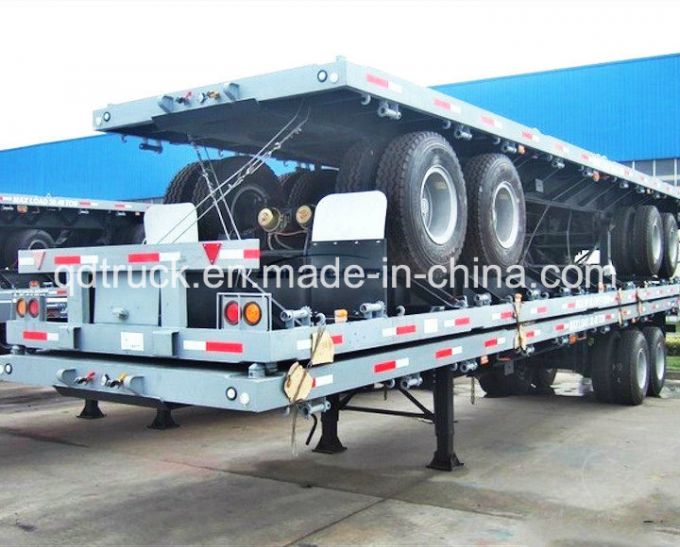

Hot sale! Tri-Axle Container Flatbed semi trailer

Hot sale! Tri-Axle Container Flatbed semi trailer

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.


We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
Dimension:




Length: 15000mm
Width: 2,500mm
Height: 1,550mm

Steel Structure:
Material: High tensile low alloy, Q345B
Height of main beam: 500mm
Top flange thickness: 14mm
Web plate thickness: 8mm
Bottom flange thickness: 16mm
Platform Thickness:2.5mm

OEM Parts Configuration:
King-pin: 2'or 3.5'
Axle: Fuwa, 3*13ton
Tire: 11.00R20, 12pcs
Rim: 8.0 12pcs
Brake chamber: 6 Double
Leaf spring: 10/10/10
Landing gear:JOST Brand
Container locks: 12 sets
Electrical system: 24V; 7 ways receptacle; LED lamps
Colour and Marking: Comply with the customer's requiremen
Paint: Polyurethane Paint

Accessory:
Tool box: 1pcs
Spare tire carrier: 2 pcs

Description of vehicle	20" 20feet
Axle	2/3-axle	13ton FUWA
Outrigger	JOSTZ20
Gross weight (kg)	28010
Tare weight (kg)	5990
Payload (kg)	32000
External dimension (L*W*H) mm	12450x2498x1490
Wheel base(mm)	7190+1310+1310
Track space(mm)	/1830
Tires	None	Rim:8.25-22.5
Leaf spring	7/7/7,8/8/8
Leave angle(°)	18
Trail pin	2"	(3.5" is optional)
ACCESSORIES	TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES AND WHEELS;

Design Drawing:
A Drawing will Send to Clients Confirm Suitable Design for Varied Trucks and Purpose.Try to Provide Most Suitable Trailers
Blank Progress:
Beams and Accessories are Processed with Scale Numerical Control Plasma Cutting Machine,Brings High Precision,Ensure Geometric Accuracy.Rolling-Over Welding Provide Every Point Quality Welding.
Shot Blasting:
Trailer Body and Ports are Pre-treated with Shot Blasting in Order to Remove Rust and Eliminate Oil,Improve Surface Intensity and Painting Adhesion
Painting:
once Primer with Twice Finish Painting Provide Good Anti-rust Capability
Test:
Trailer Performance test before delivery
