/20ft 40ft Skeleton Semi Trailer
- USD 8500.17 /Unit
- 1 Unit
- 54 Unit
- 15 days
Product Description

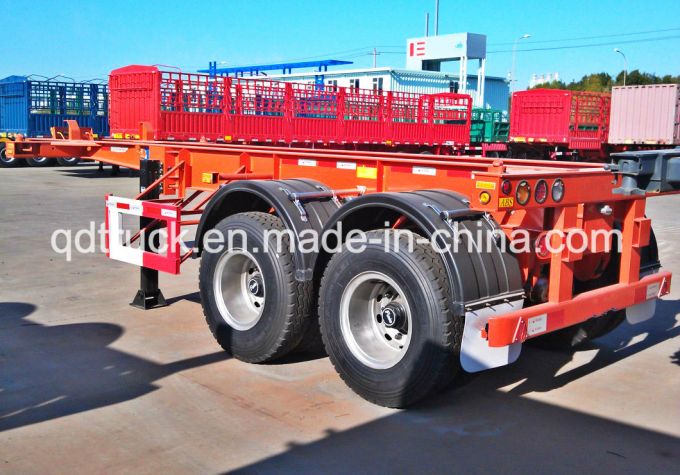

20ft 40ft Skeleton Semi Trailer
We can supply 40ft Skeleton Container Semi Trailer, skeleton trailer, container semi trailer, skeletal semi trailer, skeleton semi-trailer Goose Neck Semi Trailer, Low Bed Trailer, Low Bed Semi Trailer, Low Bed Semi-Trailer, Semi Trailer, Semi-Trailer, Trailer, Cargo Semi Trailer, Sidewall Semi Trailer, Van Trailer, Dump Trailer, Tipper Trailer, U Shape Tipper Trailer, Flatbed Trailer, Flatbed Semi Trailer, Container Semi-Trailer, Oil tank trailer, 40ft Skeleton Container Semi-Trailer and so on.
1. Tare Weight 6000kg
2. Payload 40000kg
3. Chassis: Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm, width 140mm.
4. Axle: 2/3 axles of Germany design 12ton, 13 ton, 16 ton axle optional upon choice
5. Brand Name: FUWA -optional BPW
6. Suspension: Germany design heavy duty mechanical suspension or air suspension optional upon choice
7. Floor: 3mm checker plate Leaf Spring Doll type Leaf spring
8. King Pin: JOST brand 2" Bolt-in King Pin
9. Landing Gear: JOST brand Two-speed, manual operating, heavy duty Wheel Rim 8.25-20, 9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
10. Tyre: 11.00R20, 12.00R20, 11R22.5, 12R22.5 tire with one spare tire optional upon choice
11. Twist Lock: 12 nos. Of ISO twist lock for 1X20ft, 2X20ft; 1X40ft container, the retractable central locks can be laid down. Spare Tire One set of spare tire including a carrier
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
We can supply 40ft Skeleton Container Semi Trailer, skeleton trailer, container semi trailer, skeletal semi trailer, skeleton semi-trailer Goose Neck Semi Trailer, Low Bed Trailer, Low Bed Semi Trailer, Low Bed Semi-Trailer, Semi Trailer, Semi-Trailer, Trailer, Cargo Semi Trailer, Sidewall Semi Trailer, Van Trailer, Dump Trailer, Tipper Trailer, U Shape Tipper Trailer, Flatbed Trailer, Flatbed Semi Trailer, Container Semi-Trailer, Oil tank trailer, 40ft Skeleton Container Semi-Trailer and so on.
1. Tare Weight 6000kg
2. Payload 40000kg
3. Chassis: Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm, width 140mm.
4. Axle: 2/3 axles of Germany design 12ton, 13 ton, 16 ton axle optional upon choice
5. Brand Name: FUWA -optional BPW
6. Suspension: Germany design heavy duty mechanical suspension or air suspension optional upon choice
7. Floor: 3mm checker plate Leaf Spring Doll type Leaf spring
8. King Pin: JOST brand 2" Bolt-in King Pin
9. Landing Gear: JOST brand Two-speed, manual operating, heavy duty Wheel Rim 8.25-20, 9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
10. Tyre: 11.00R20, 12.00R20, 11R22.5, 12R22.5 tire with one spare tire optional upon choice
11. Twist Lock: 12 nos. Of ISO twist lock for 1X20ft, 2X20ft; 1X40ft container, the retractable central locks can be laid down. Spare Tire One set of spare tire including a carrier
| Technical Specifications | |
| Dimensions (L*W*H) mm: | 12375*2480*1510 |
| Fifth Wheel Coupling Height (mm): | 1200 |
| Loading Plate Height (mm): | 1430 |
| Front overhand (mm): | 900 |
| Number of wheel: | 3 |
| Wheel space (mm): | 7000+1356+1356 |
| TyreSpecification: | 12R22.5 |
| Steel rim: | 8.0-20 |
| Number of Tyre (pcs): | 12 |
| Tare Weight (kg): | 6000 |
| Rated Payload (kg): | 40000 |
| Total Mass (kg): | 48000 |
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
| Technical Specifications | |
| Dimensions (L*W*H) mm: | 12375*2480*1510 |
| Fifth Wheel Coupling Height (mm): | 1200 |
| Loading Plate Height (mm): | 1430 |
| Front overhand (mm): | 900 |
| Number of wheel: | 3 |
| Wheel space (mm): | 7000+1356+1356 |
| TyreSpecification: | 12R22.5 |
| Steel rim: | 8.0-20 |
| Number of Tyre (pcs): | 12 |
| Tare Weight (kg): | 6000 |
| Rated Payload (kg): | 40000 |
| Total Mass (kg): | 48000 |
