/40′ Container Transportation Vehicle, long vehicles
- USD 8900.16 /Unit
- 1 Unit
- 78 Unit
- 12 days
Product Description
Hot sale! 40' container transportation vehicle,long vehicles
40ft skeletal container trailer
1: 12.46*2.48*1.58m
2: Skeleton or flatbed trailer
3: 3 or 2 axles
4: Spring or air suspension
1) container trailer GENERAL SPECIFICATION
Size 12460mm*2480mm*1480mm
Tare weight approx. 5000kgs
Pay load 45 tons
RUNNING GEAR
Axles FUWA 13- 16 Tons load capacity per axle, wheel track 1840mm
Suspension Mutil leaf spring Suspension with equalizer beam, 10-15 PCS of leaf springs, 90mm *13mm
Wheels Steel disc, 8.5*20, 12 PCS
Tires 11R22.5, 12PCS
Brakes Dual line brake system, non-asbestos
Brake Chambers One unit relay valve and emergency valve with T30 and T30/30 chambers together, air-actuated
UNDERframe
Main Beam I shape, 550-600mm Height, Mild Alloy(Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding. Top Flange 20mm, width 200mm; Bottom Flange 20mm, width 200mm; Middle Flange 10mm thickness
Side beam 16# channel
Bumper Heavy duty Bumper at the end, 18# channel
King pin 3.5"bolt-in type
Landing Gear double speed landing gear, Dynamic capacity 28000kg, Static capacity 80000kg
Twist lock 12 locking pin design suit for 2 X 20ft, 1 X 40ft container, center lock pin can laid down
Mudguard 3mm steel plate bending or plastic
Appendix 1 tool box, 1.5m*0.55m*0.45m, 2mm thickness
1 Spare tyre carrier
1 set of standard trailer tool
ELECTRICAL & PAINT
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Air/Elec. Connector ISO standard air connector,
24V 7 pin plug socket
Paint sand blasting before painting
Anticorrosive primer
2 coat of finishing urethane paint
Color as per your request
2)high quality container semi-trailer with competitive price.
3) Certification: ISO 9001 and TS16949, South African SABS-3 for container trailer semi trailer.
4)Quick response and quotation.
We also like to develop new types container semi trailer according to your special requirement
40ft skeletal container trailer
1: 12.46*2.48*1.58m
2: Skeleton or flatbed trailer
3: 3 or 2 axles
4: Spring or air suspension
1) container trailer GENERAL SPECIFICATION
Size 12460mm*2480mm*1480mm
Tare weight approx. 5000kgs
Pay load 45 tons
RUNNING GEAR
Axles FUWA 13- 16 Tons load capacity per axle, wheel track 1840mm
Suspension Mutil leaf spring Suspension with equalizer beam, 10-15 PCS of leaf springs, 90mm *13mm
Wheels Steel disc, 8.5*20, 12 PCS
Tires 11R22.5, 12PCS
Brakes Dual line brake system, non-asbestos
Brake Chambers One unit relay valve and emergency valve with T30 and T30/30 chambers together, air-actuated
UNDERframe
Main Beam I shape, 550-600mm Height, Mild Alloy(Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding. Top Flange 20mm, width 200mm; Bottom Flange 20mm, width 200mm; Middle Flange 10mm thickness
Side beam 16# channel
Bumper Heavy duty Bumper at the end, 18# channel
King pin 3.5"bolt-in type
Landing Gear double speed landing gear, Dynamic capacity 28000kg, Static capacity 80000kg
Twist lock 12 locking pin design suit for 2 X 20ft, 1 X 40ft container, center lock pin can laid down
Mudguard 3mm steel plate bending or plastic
Appendix 1 tool box, 1.5m*0.55m*0.45m, 2mm thickness
1 Spare tyre carrier
1 set of standard trailer tool
ELECTRICAL & PAINT
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Air/Elec. Connector ISO standard air connector,
24V 7 pin plug socket
Paint sand blasting before painting
Anticorrosive primer
2 coat of finishing urethane paint
Color as per your request
2)high quality container semi-trailer with competitive price.
3) Certification: ISO 9001 and TS16949, South African SABS-3 for container trailer semi trailer.
4)Quick response and quotation.
We also like to develop new types container semi trailer according to your special requirement
| Technical Specifications | |
| Dimensions (L*W*H) mm: | 12375*2480*1510 |
| Fifth Wheel Coupling Height (mm): | 1200 |
| Loading Plate Height (mm): | 1430 |
| Front overhand (mm): | 900 |
| Number of wheel: | 3 |
| Wheel space (mm): | 7000+1356+1356 |
| TyreSpecification: | 12R22.5 |
| Steel rim: | 8.0-20 |
| Number of Tyre (pcs): | 12 |
| Tare Weight (kg): | 6000 |
| Rated Payload (kg): | 40000 |
| Total Mass (kg): | 48000 |

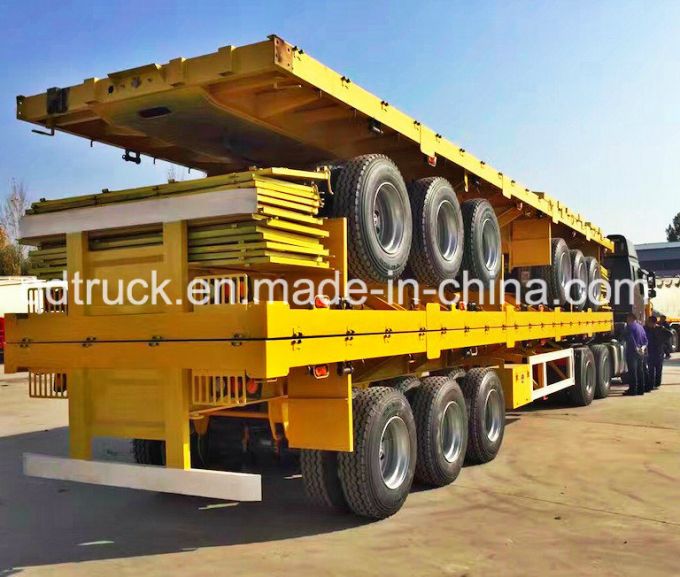

Product Images
-
