5000 U. S Gallon (19cbm) Sulphur Tanker Trailer

  • 5000 U. S Gallon (19cbm) Sulphur Tanker Trailer
  • USD 50000.60 /Unit
  • 1 Unit
  • 68 Unit
  • 7 days
Product Description
5000 U.S GALLON (19m³) Sulphur Tank Trailer
Top brand from China
Excellent Performance
Good Reliability
Famous Reputation

5000 U. S Gallon (19cbm) Sulphur Tanker Trailer
Specification for Sulphur Tank Trailer
Type5000 U.S GALLON (19m³) Sulphur Tank Trailer
Tank BodyBody & Compartment Variable Cross-Section Tank, 1 compartment, 19m³+ 5% Vapor Volume.
Design Standard ADR Standard (Europe).
Tank Body SS316L, 5mm
Dish End SS316L, 6mm, D-1600mm & 1800mm
Baffle Plate SS316L, 4mm, 3 pcs.
Tank Fittings & PipingManholeSS316L, 1 pcs.
Sluice Valve SS316L, 4", with steam heating jacket.
Angle ValveSS316L, 4".
Safty ValveSS316L, 4".
Pressure Gage 0-1Mpa, 1 pcs.
Testing Pressure 6 bar
Thermometer0-200ºC, 1 pcs.
Heat-Insulation SystemInsulation Cover304 Stainless, 0.7mm
Insulation Dish End 304 Stainless, 3mm
Insulation Material Fiberglass (50mm) + PU (50mm)
Heating Pipe SS316L, Seamless Tube, D-60*4.
Runing GearAxle FUWA 13 tons Axle, 3 Axle, 2 Axle with ABS.
The Suspension System The front 1 axle is JOST Mechanical Lifting Suspension; rear 2 axles are Mechanical Suspension with Leaf Spring.
Tire 295/80R22.5, Double coin brand, 12 pcs.
Rim8.25-22.5, Sunrise brand, Carbon Steel Type, 12 pcs.
LandingGear JOST, 19".
Kingpin JOST, 2.0".
ABS system4S/2M.
AccessoriesLadderFront Design.
Tool Box 1000mm Length, 1 pcs.
Rear Bumper 1 set.
Side Under Run 1 set.
Fender Black Plastic Type, 6 pcs.
Spare Tire RackQ345, 1 pcs.
Rail Pneumatic Hand Rail, Both sides, Aluminium Type.
Lights 24V, LED Lights, Phillips Cables;
Fire Extinguisher & Bracket 8 kg type, 2 sets.
Delivery TimeWithin 75 days once prepayment received.
5000 U. S Gallon (19cbm) Sulphur Tanker Trailer
5000 U. S Gallon (19cbm) Sulphur Tanker Trailer
Product Images

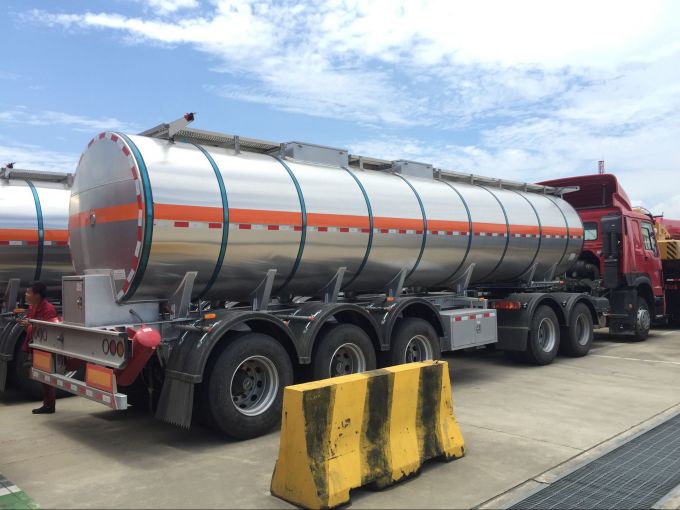

5000 U. S Gallon (19cbm) Sulphur Tanker Trailer Images 1
