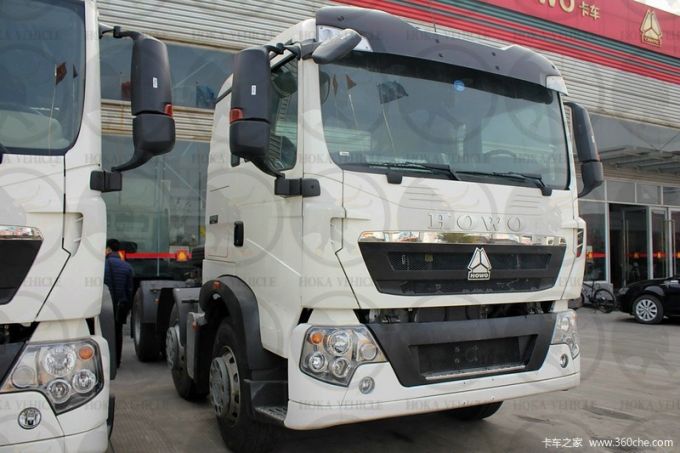

Sinotruk HOWO T5g 6X2 Tractor Truck

Features:
T5G-----The loyal partner with you.
German MAN technology + International recognized main parts
Low curb weight + Low oil consumption
Adapted to ECER29 safety standard
T5G Series Recommend Working Condition:
6x4 tractor head for dangerous goods transportation
4x2 air suspension tractor head for high value-added goods transportation e.g tobacco and precise instrument
Chassis for high-end sanitation truck, wrecker truck, oil field truck, fire engine.
8x4 and 6x4 concrete mixer chassis for high-end user.
Dump Truck/ Tracor Truck/ Cargo truck/ Refrigerator truck

Advantage of T5G Series
Cab: Comfortable

Cab of T5Gis equipped with air driven steering wheel, air suspension, human engineering seat etc. With many years' accumulation in the experience of designing cab, T5G offer a luxurious and comfortable situation for every driver.


Safety

The cab is adapted to the ECE R29 safety standard, which is one of the highest standards in Europe. During the design, different tests are used to assure the safety standard of the cab.


Engine


MC11, MC07 series engine is the latest series engine which is manufactured by Sinotruk. The design and technology of this series all come from German Man D20 and D08 series engine, which is one of the best engines around the world.


Chassis


Like the engine, chassis of T5G are also from German MAN. With the latest design and qualified material, the chassis is adapted to the requirement of different working conditions.

All the hoses, pipes on the chassis are well protected and assembled according to German standard on the chassis.

For suspension system, there are also 3 kinds of alternatives include leaf spring, air suspension, rubber suspension to fit the requirement of different cargos.


Main truck body parts

Except the main assemblies, many important parts in T7H and T5G truck also come from international famous factories in commercial vehicle industry. They are listed below,

Germany ZF steering and oil pump

Germany WABCO clutch control system, brake valve, gear-shifting system, air dryer

Germany VOSS connectors

American CUMMINS fuel filter

Germany MANN+HUMMEL air filter

Germany VDO instrument and electric control module

Germany BEHR inter-cooler and water tank

Germany TMD disk brake pad

Weight Parameter	Complete Vehicle Kerb Mass(kg)		8100
	Maximum authorized total mass (kg)		25000
	Maximum authorized towed total mass(kg)		40000
Dimension Parameter	External Dimensions(mm)	Length	6730
		Width	2496
		Height	3035,3335,3535,3830
	wheelbase(mm)		3200+1400
	Minimum Ground Clearance(mm)		235
Performance Parameter	Maximum Speed(km/h)		110
	Economical Speed(km/h)		85
	Maximum Gradeability(%)		45
	Turning diameter(m)		14
Recommended Configuration	Engine	Engine Type	MC07.34-30
		Rated power(kW)/Rev(r/min)	248/2300
		Maximum Torque(N*m)/Rev(r/min)	1250/1200-1800
	Transmission		HW10
	Clutch(mm)		430
	Rear Axle	Type	MCY13
		Speed Ratio	4.11
	Fuel Tank(L)		400
	Chassis Cross-section(mm)		965Rear762×270×85×8
	Suspension(Front,Back)		3/4
	Tyre		295/80R22.5
