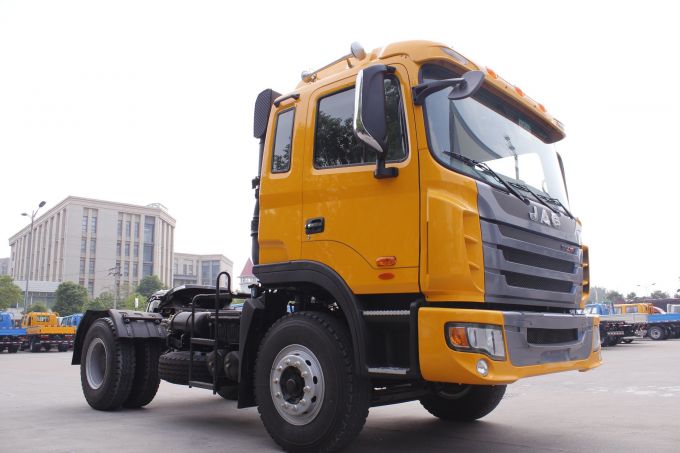

China High Quality JAC 360HP 4*2 Drive Head Tractor Low Price for Sale
- USD 30000.35 /Unit
- 1 Unit
- 43 Unit
- 28 days
Product Description
Contact me: Jessie Yao
Mobile: 008615565877070
| Model | HFC4183K3R1 | ||
| Weight | Curb Weight(kg) | 7400 | |
| Gross Vehicle Weight(kg) | 18000 | ||
| Gross Combination Weight(kg) | 19400 | ||
| Dimension | Overall Dimensions(mm) | Length | 6225 |
| Width | 2495 | ||
| Height | 3150 | ||
| Wheel base(mm) | 3500 | ||
| Minimum Ground Clearance(mm) | 298 | ||
| Performance Parameters | Maximum Speed(km/h) | 102 | |
| Economic Speed(km/h) | 82 | ||
| Maximum Gradability(%) | 33 | ||
| Minimum Turning Diameter(m) | 14.2 | ||
| Specification | Cabin | HW79(2 seats and 2beds) | |
| Engine | Model | WD615.46 | |
| Net Power(Hp)/Rotating Speed(r/min) | 290/2200 | ||
| Maximum Torque(Nm)/Rotating Speed(r/min) | 1160/1100-1600 | ||
| Gearbox | 9JS150T-B+QH50 | ||
| Clutch(mm) | 430 | ||
| Rear Axle | Type | ST16 | |
| Gear Ratio | 4.42 | ||
| Oil Tank(L) | 400 | ||
| Tires | 12.00R20, 12.00R22.5, 295/80R22.5, 315/80R22.5 | ||
