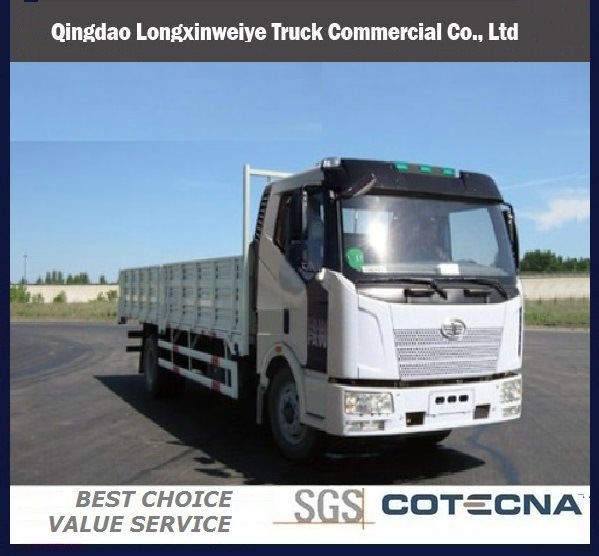

Faw 5 Tons Van Light Cargo Truck

FAW 5 Tons Van Light Cargo truck
We can supply various Truck from 5 tons to 40 tons. Lorry, Van truck, Wagon Truck, Cargo Truck, Oil Tank Truck, Garbage Truck, cemenet tank truck and so on. FAW HOWO SHACMAN FOTON NORTH Benz

Type: CA1169PK2L2EA80
Cabin: Sailong
Engine Model: CA4DF3-14E3, DEUTZ BF4M2012-14E3, CA6DF3-16E3F
Emission standard: Euro 3
Power (KW): 140HP, 140HP, 160HP
Clutch model: 380mm, single plate, dry, diaphragm
Gearbox Model: CA6TBX075M transmission

Rear Axle: CA385 wheel reduction axle
Rear Axle speed ratio: 5.725
Wheel & tire: 8.25R16/ 9.00R20, Model 16Ply Rating
Axle base: 5350
Fuel Tank: 160 /180L

Overall dimensions Overall dimensions Length: 8832
Width: 2290
Height: 2790
Front overhang(loaded): 1312
Rear overhang(loaded): 2416

Wheel base Front wheel: 1800
Rear wheel: 1800
Passing angle(loaded) Approach angle: 21
Departure angle: 13

Mass
Parameter Curb weight (kg): 5600
Gross truck weight: 15700
Max. Loaded weight: 9905
Cargo box dimesion: 6750x2300x600.

SPECIFICATION -----FAW Heavy Duty Cargo Truck
Model	NEW J5P CA1310
Dimensions	L*W*H(mm)		7068x2490x2890
	Wheel base(mm)		3400+1350mm
	Cargo body length(mm)		5700mm
Weight in KGS	Curb Weight(kg)		8950kg
	GVW(kg)		32000kg
Engine	Brand		WD615.44
	Power		247kw@2200rpm
Max. Speed	80km/h
Gear box	FAW CA9TB160M 9 speeds 1 reverse
Clutch	Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting
Tyre	Tyre	11.00R20-18 10+1 Piece
Fuel tank	400L Tank
Front axle	Q702 7.5T
Rear axle	LC300 Press welding , i=5.26,13tx2
frame	300x80x8mm, high strength steel chassis frame
