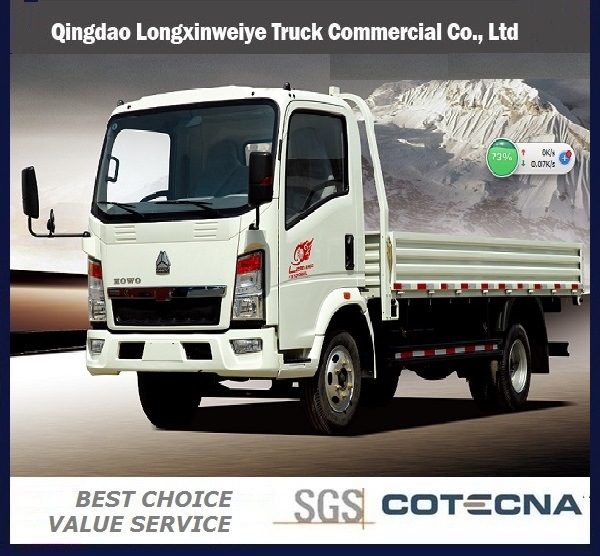

2015 New HOWO 3ton Light Cargo Truck

2015 New HOWO 3ton Light Cargo truck

Cabin HOWO Cabin, 70 tillable to the front
Driving type 4x2 LHD
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 5480× 2000× 2450
Wheel base (mm) 2800
Wheel track (front/rear) (mm) 1620/1520
Approach/Departure angle(° ) 17/18
Weight in KGS Tare Weight 2400
Payload 3100
Front axles loading capacity 1x2000
Rear axles loading capacity 1x3500
Max. Driving speed(km/h) 90
Engine Brand SIDA
Type 4 cylinder in line, Turbocharged and water cooled
Model SD490
Horse Power(HP) 81
Displacement (CC) 2545
Emission standard Euro II
Gearbox 5-speed Forwards gear & 1 reverse gear
Tire 6.50-16 with one spare
Brake Dual Circuit, Air Brake
Carriage Size 3650× 1900× 400 mm

Clutch	Single dry plate, friction disc outer diameter 285, hydraulic long distace control with pneumatic boost
Transmission	Jiangling JC528T6/5MTI260A five speed all synchromesh transmission, long distance wire control
Rear Axle	4T rear axle, pressed and jointed housing axle
frame	frame type, longitudinal beam, variable cross-section, riveted structure
Suspension System	Front Independent Macphersan suspension , stabilizer bar, rear leaf spring, double adjustable shock absorber
Steering System	Vacuum-assisted, dual-line braking system, front disc, dual two leading shoe drum brake
Tire	6.50R16tubeless radial tyre, wheel rim5.50F
Electric System	12V, mongline, cathode ground connection
Starter	12V, 1.32kW
Battery/Generator	6-QA-100 ( one ) /12V 110A Generator
Other	Centralized lubrication system
Body Structure	Separate frame construction, conventional cab, all-metal enclosed body
Interior Trimming	New-style combined type instrument panel, carpet pattern, rubber letherette
Seat	3 seats and the driver s chair can be adjust (up, down, front, back ), two ponits safty-belt
Air Conditioner	Air conditioner (warm and cold)
Defrosting System	Engine heat defrost
Heating System	Engine heat water heating
Audio Visual	Digital audio
Rear View System	Exterior rearview mirrors, interior rearview mirrors
Lamp	Luxury crystal-like lamp
Wiper	Asynchronism panorama wiper with water spray
Servcie Facility	Trash bin, cigar lighter, reading lamp, fire fighting equipment on vehicle, toolbox
Other	All the other specifications are same with sample unit.
