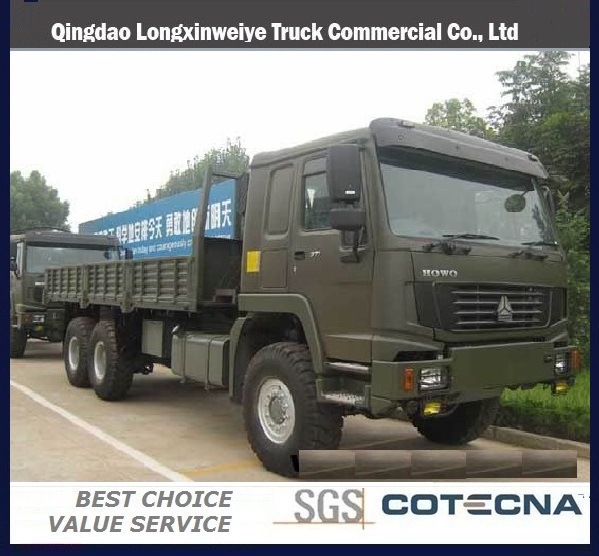

Sinotruk HOWO 6X4 20ton Cargo Truck on Sale

Sinotruk HOWO 6x4 20Ton Cargo truck On Sale

Driving type: 6x4
Dimension(Lx W x H)(unloaded): 7568× 2496× 3110
Inner body (mm): 5000x2300x600
Wheel base (mm): 4300
Curb weight(kg): 6850
Loading capacity(kg): 9150
Engine 266HP/195kw

SINOTRUCK Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
Max torque (Nm/rpm): 1100/1100-1600
Emission EURO II
Clutch: Single dry frictional disc, Hydraulic boosting
Gearbox: HW15710C, mechanism, 10 speed, 2 reverse gear
Service brake: Brake GAP can be adjusted, double circulation air brake system
Assistant brake: Engine exhaust brake

Park brake: Potential springs pressing on middle and rear wheels
Steering system (ZF company): ZF 8098, driver sit at the left hand side
frame: Variable width, variable sections, side beam structure
Front axle: STR technology non-driving steering axle
Middle and Rear axle
ST16 double reduction, hub redactor driving axle
Tyre: 12.00-20
Electrical system Battery: 2x12V/135Ah
Generator: 28V-35A
Starter: 5.4Kw/24V
Cab: Air suspension cab, sleeper, hydraulic shock absorb adjustable seat, safety belt, adjustable steering, sunroof, sun cap, bumper
Approaching angle/ Departure angle: 32/31
Overhang (front/rear): 1578/1690
Max speed (km/h): 76.

Cnhtc HOWO 6X4 Cargo Truck
Cabin	Driving type		6×4 LHD
	HOWO Standard cab
Vehicle main Dimensions	Overall dimensions (L×W×H)mm		10350×2496×3633
	Wheel base (mm)		4757+1400
	Wheel track (front/rear) (mm)		2022/2041
	Approach/Departure angle()		16/22
Weight in KGS	Tare Weight		11480
	Loading Capacity		13390
	Front axles loading capacity		1X7000
	Rear axles loading capacity		2×16000
Max.driving speed (km/h)			102
Engine	Brand		SINOTRUK
	Model		WD615.69
	Type		4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking
	Displacement (L)		9.726
	Horse Power (HP)/(KPM)		336HP/2200KPM
	Max.Torque/(KMP)		13500Nm/1100-1600RPM
	Emission standard		EuroII
Gearbox	HW19710 Gear box with 10 forwards and 2 reverses
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF power steering, modol ZF8098, hydraulic steering with power assitance
Fuel tank (L)	300
Tire	12.00-20,Optional 12.00R20,12R22.5
Cargo body
Dimension	L×W×H	7650×2300×800	5200×2300×600
