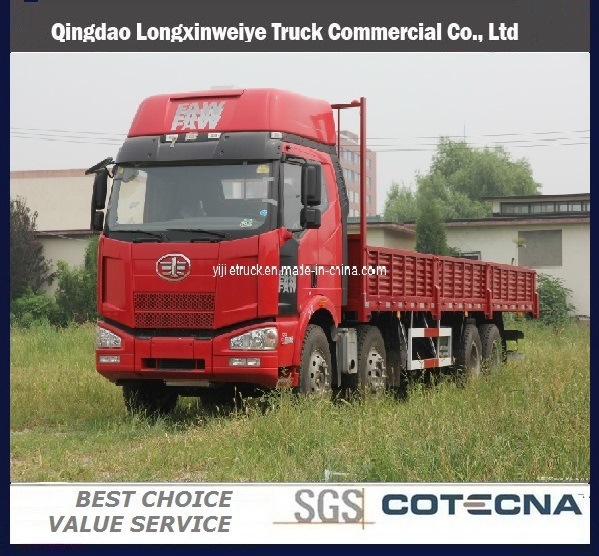

Faw 50 Tons Van Lorry Truck/Cargo Truck Ca5310xxy1k2l7

Faw 50 Tons Van Lorry Truck/Cargo truck CA5310XXY1K2L7

Type: CA5310XXYP1K2L7T4EA80-1
Cabin: J5M
Engine Model: CA6DF3-24E3F, CA6DF3-26E3F, BF6M1013-26E3
Emission standard: Euro 3
Power (KW): 240HP, 260HP, 260HP
Clutch model: 430mm, single plate, dry, diaphragm
Gearbox Model: FULLER 8JS125/9JS119 transmission

Rear Axle: CA435 wheel reduction axle
Rear Axle speed ratio: 4.875
Wheel & tire: 10.00R20, Model 18Ply Rating
Axle base: 1900+4500+1350
Fuel Tank: 300L

Overall dimensions Overall dimensions Length: 11993
Width 2499
Height 3830
Front overhang(loaded) 1375
Rear overhang(loaded) 2868

Wheel base Front wheel 2020
Rear wheel 2020
Passing angle(loaded) Approach angle 18
Departure angle 12

Mass
Parameter Curb weight (kg) 12870
Gross truck weight 31000
Max. Loaded weight 18000
Cargo box dimesion: 9500x2300x2500.

raction type	4x2
Driving type	LHD (RHD is optional)
Cabin	flat roof, single row, Air conditioner
Engine
Brand	DACHAI
Model	CA4DC2-10E3 Euro3 EGR
Engine type	Diesel 4-stroke direct injection engine, 4-cylinder in-line with water cooling, turbo-charging & intercooling
Horsepower	100hp
Rated power	76kw
Displacement	3.168 liters
Max torque	320NM@3200rpm
Bore/Stroke	98/105

Gear box	FAW CA5-48 5-forward speeds:6.098,3.194,1.775,1,0.837 1 reverse speed:5.673
Clutch	300mm Diaphragm type

Front axle	FAW 135,
Rear axle	FAW 1058 Impulse welding axle Ratio: 1:5.571

Tyre	Double coin 8R17.5-10
Spring	7/10+3
frame	200*65*5mm
Rated voltage	24V

Dimension
Wheel base(mm)	3260
Front/rear overhang(mm)	1241/1400
Front/rear track(mm)	1600/1665
Approach/departure angle(º)	18/15
Overall dimension(mm)	5901×1960×2305

Weight
Kerb mass(kg)	2250
Total mass(kg)	6495

Body
Inner size (mm)	Length	4200
	Width	2000
	Height	400
Capacity		3.36CBM
