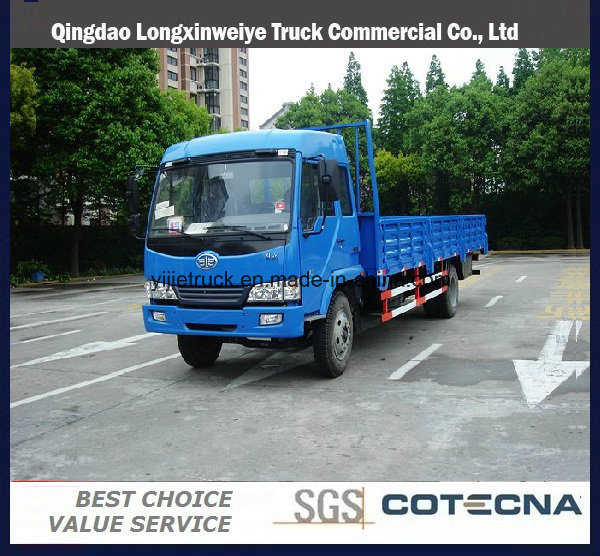

FAW&JAC Light Truck / Cargo Truck (1063 W115)

FAW&JAC Light Truck / Cargo truck (1063 W115)
Type: CA5310XXYP1K2L7T4EA80-1
Cabin: J5M
Engine Model: CA6DF3-24E3F, CA6DF3-26E3F, BF6M1013-26E3
Emission standard: Euro 3
Power (KW): 240HP, 260HP, 260HP
Clutch model: 430mm, single plate, dry, diaphragm
Gearbox Model: FULLER 8JS125/9JS119 transmission

Rear Axle: CA435 wheel reduction axle
Rear Axle speed ratio: 4.875
Wheel & tire: 10.00R20, Model 18Ply Rating
Axle base: 1900+4500+1350
Fuel Tank: 300L

Overall dimensions Overall dimensions Length: 11993
Width 2499
Height 3830
Front overhang(loaded) 1375
Rear overhang(loaded) 2868

Wheel base Front wheel 2020
Rear wheel 2020
Passing angle(loaded) Approach angle 18
Departure angle 12

Mass
Parameter Curb weight (kg) 12870
Gross truck weight 31000
Max. Loaded weight 18000
Cargo box dimesion: 9500x2300x2500.

Pictures:

Model	CA6DL1-26	CA6DL1-26E3
Type	6-cylinders in line, 4-stroke, water-cooled, direct injection, turbocharged, air-to-air intercooled
Peak Power kW (HP) @ RPM	192 (260) @ 2300	192 (260) @ 2300
Max Torque N. m (lb. ft. ) @ RPM	1000 @ 1400	1, 050 (774) @ 1, 300
Specific Fuel Consumption (g/kWh)	200	193
Bore & Stroke (mm)	110× 135
Displacement (L)	7.7
Compression Ratio	17.5: 1
Emissions Rating	Euro-2	Euro-3
Air Compressor	380L/min @ 2300rpm
Lube Oil System	Full flow oil filter, centrifugal oil filter, turbocharger oil filter
Starting System	Starter: 24V 6kW Alternator: 28V 2kW, with built-in regulator Cold starting aid: grid-type pre-heater
Air Intake System	Dual paper element air filter with air restriction indicator
Exhaust System	Modular box-type muffler with flexible pipe
Fuel Supply System	One frame-mounted primary fuel filter and two engine-mounted secondary fuel filters Fuel Tank Capacity: 400L
Cooling System	Radiator: tube-type aluminum radiator with coolant recovery tank Fan: Lightweight plastic with viscous type drive
