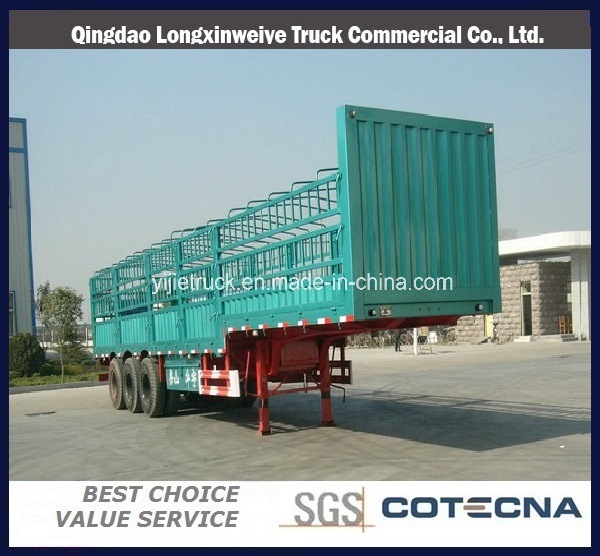

3 Axles 35ton Truck Trailer Semi Trailer Zjv9280xxy

3 Axles 35Ton Truck Trailer Semi Trailer ZJV9280XXY

1. Model: ZJV9280XXY
2.6 months guarantee system
3. High quality and service
4. Practical and Economical
5.3C ISO certification
6. Small order can be accepted.
7. More than 20 years experience manufacturer

Welcome your inquiry at any time, we'll surely give you the further product information and nice quotation at the first time. Besides, welcome to our factory side for inspection at any time, we can pick you up at the airport.

Product Specifications
Model Number	ZJV9280XXY
Rated Load	45000 kg
Tare Weight	8500,8300 kg
Wheel base	7100+1310+1310 (mm)
TyreSpecifications	1100R20-18/12R22.5-18
No. Of the Tyres	12
Axle Brand	FUWA (BPW optional)
No. Of the Axles	3
King Pin	50#/90#
Landing Leg	28ton
Pieces of leaf-spring	10 (8)
Suspension	is constitute by tandem steel plate spring and bearing legs.
Departure Angle	14.2
Front/Rear Overhang	2160 mm
Outside Dimensions (LxWxH)	13000x2550X3850 3650,3450 (mm)
Interior Dimensions (LxWxH)	12800x2350X2200 2000,1800 (mm)
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system/ABS
Brake Air Chamber	Six double chamber
Electrical	24V 7 ways(7 wire harness)
Usage	Applicable to the transportation of the household appliance, textile goods, coal, dinas, and other building materials.
