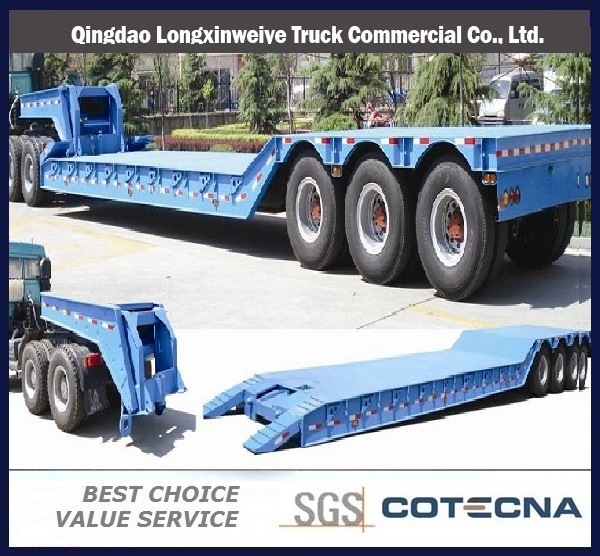

3 Axles Detachable Low Bed Semi Trailer

Detachable Low Bed Semi Trailer (QDT9402TDP)
Low Flat Bed Semi-trailer with Removable Gooseneck

Model: QDT9402TDP
General information:
Dimensions (L x W x H): 13481x3500x1215(With extending 15mm each side)
Loading Capacity: 70 tons

Model:	Detachable low bed semi trailer
Main Specification	Curb Weight	17.4 Tons
	Loading Capacity	70 Tons
	Gross Vehicle Weight	87.4 Tons
	Overall Dimensions	(L x W x H mm) 16064 ×3000×1928
	Effective Area	(L x W x H mm) 7500×2800×845
	Tyres Specification	12.00R20 Double Star 12PCS
	Axles	3 Axles, 16MT, YUEK Brand
Main Specification	Plate Spring	9/9/9
	Main Longitudinal Girder (mm)	Height 450mm
		Top flange 30mm
		Middle flange 16mm
		Middle flange 16mm
		Bottom flange 30mm
	King Pin	3.5'(90#)
	Surface Steel Plate	5 mm Diamond Plates
	Brake	Air Brake
	Wheel base	1310mm+1310mm
	Power Unit/Engine	YANMAR 16.2KW
