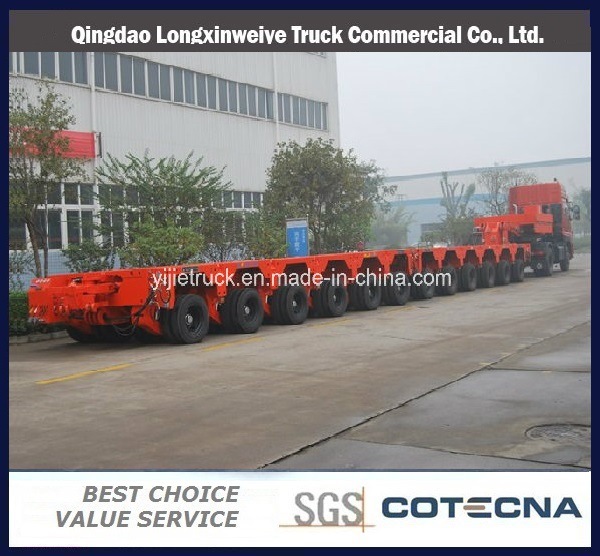

300ton Steering Axis Power Station Module Trailer

100-300ton Hydraulic Gooseneck Steering Modular Trailer

Rated load capacity: 80-500tons
Hydraulic steering axis, hydraulic gooseneck
Power station with motor and bump
Lowbed plateform
Axles: 6lines --12lines axles

Type:
Over heavy cargo transportation equipments,
Large Hydraulic gooseneck multi power steering axles heavy duty modular trailer (special vehicle) container semi trailer
Wind power transportation equipments,
Large construction machinery transportation,
Bridge and abnormal shape cargo transportation.
Self-walking design

Details information:

Our advantage:
1, we can do the designs according to the customers' requirements
2, we can offer you the high quality and reasonable price
3, we can offer your a good after-sell service
4, we have strong prefessinal design team
5, prompt delivery. Small order is welcome

Name	9 lines 18 axles modular trailer
Rated Load	180, 000 kg
Tare Weight	56, 000 kg
Wheel base	1550mm
TyreSpecifications	225/70R22.5
No. Of the Tyres	72 (8 pcs per line)
No. Of the Axles	18 (front 8, rear 10)
Axle-load	20, 000 kg
Gooseneck	Power lifting gooseneck
Length of the concave beam	8.5m
Steering type	Hydraulic steering (all axles)
Full loaded rated speed	8km/h
Main frame beam	Box type full load
Power station	Motor and hydraulic pump
Platform size(accordingly)	Length: 5700+8500+7600MM Width: 2990mm Height: 1080± 290
Material of the Main Beam	Q690
Brake Air Chamber	double chamber
King pin	90#
Color	Any color will be available
Suspension type	single point of hydraulic
Remark	This price do not contain the tractor
