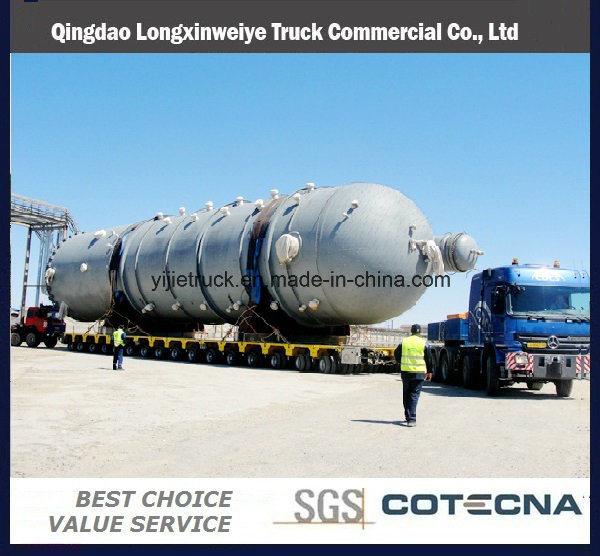

4 Axle Multi-Axis Heavy Load Hydraulic Plarform Modular Low Bed Semi-Trailer

4 Axle Multi-Axis Heavy Load Hydraulic Plarform Modular Low Bed Semi-trailer
We are the office of professional modular factory in Qingdao and have worked on producted for special trailers for more than 50 years.
Please inform us your requirement about the trailer. Then we can design it according to your request and send to you our specific parameters.

AXIE(N)	2		3		4		5		6		7		8
SPEED(km/h)	5	80	5	80	5	80	5	80	5	80	5	80	5	80
MAX-TOTAL MASS(t)	68	32.8	102	49.2	136	65.6	170	82	204	98.4	238	114.8	272	131.2
RATED PAYLOAD(t)	61	25.8	91.8	39	122.8	52.4	152.5	64.5	183	77.4	213.5	90.3	244	103.2
CURB WEIGHT(t)	7		10.2		13.2		17.5		21		24.5		28
PAYLOAD OF EACH AXLE(t)	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4
OVERALL LENGTH(mm)	3000		4500		6000		7500		9000		10500		12000
OVERALL WIDTH(mm)	3000
HEIGHT(mm)	1175±300
AXLE base(mm)	1500
WHEEL base(mm)	1800
TYRE SIZE	215/75 R17.5 135/133J
RIM SIZE	17.5 X 6.00
TYRE QUANTITY	16		24		32		40		48		56		64
MAX-ANGLE OF WHEEL	55°
MIN-TURNING RADIUS(mm)	Inside450		Inside1500		Inside2600		Inside1500		Inside2000		Inside2600		Inside3100
	Outside4070		Outside5800		Outside7600		Outside5800		Outside6700		Outside7600		Outside8500
