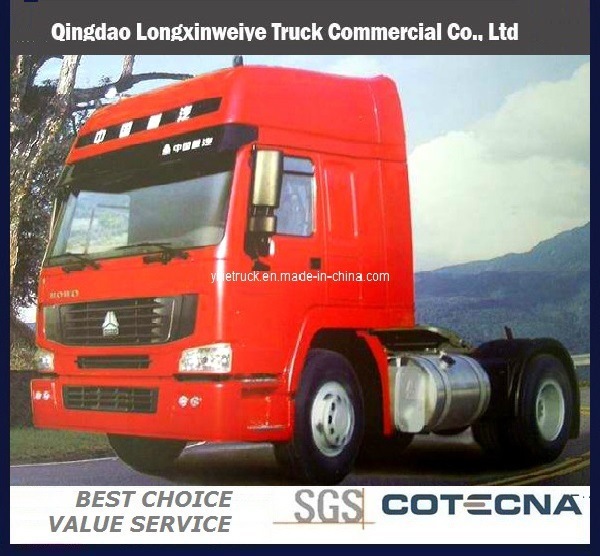

Sinotruk 4X2 20ton 336HP Tractor Head

Sinotruk 4x2 20ton 336HP Tractor Head

Cabin: HOWO cab high roof
Product: HOWO tractor head&heavy truck head 4x2
Engine: Sino truck WD615--290HP
Gear box: Fuller 9 speeds
Clutch: GF420 spring type
Steering: ZF technology

Front axle: HOWO front axle
Rear axle: HOWO 1667 drive axles
Tyre: 12.00-20 (rim: 8.5-20)
Spring: 9/9+6
Fuel consumption (L/ 100km ): 36
Fuel tank capacity (L): 380
Max. Speed (km/h): 102
Kerb. Mass: 7210 kg
Total mass: 18000kg

Wheel base (mm): 3500
Front overhang (mm): 1500
Rear overhang (mm): 1110
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24 m
Approach angle: 16 degree
Departure angle: 42 degree
Dimension (mm): 6050x2495x3260

Name	Promotion Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine
Dimension(LXW)mm	6865x2480 mm
Height	3210 mm	High-floor standard cab (without air spoiler)
	3540 mm	High-floor standard cab (with air spoiler)
	3745 mm	High-floor high-roof cab (without air spoiler)
	3850 mm	High-floor high-roof cab (with air spoiler)
Front overhang/rear overhang	1540/750, 725 mm (HW16 driving axle)
Wheelbase	3200+1400 (HW16 driving axle) /3225+1350 mm
Track	Track front	2022 mm
	Track rear	1830 mm
Cab	Brand-new a7 cab, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror
Engine	Sinotruk's new D12 series engine; Turbocharged with inter-cooling; High-pressure common-rail fuel injection system with maximum pressure of 1600bar; NationalIII emission standard; Power range: 340-460hp; D10 series engine as option
Clutch	Sinotruk's 430 diaphragm spring clutch
Gear box	Sinotruk's 19710
Front axle	New HW07 single reduction driving axle; ST16 duoble reduction drive axle as option
Rear axle	HW single reduction drive axle; ST16 double reduction drive axle as option
Tire	315/80R22.5 tubeless tire
Brae system	Front disc rear shoes brake, four-circuit protection valve, EVB brake actuator, ABS+ASR+EBL+TPM
frame	High-strength single U-profile frame with a section of 300*90*8
Electrical system	24V, CAN bus intellectual electronic control system
