Sinotruk Series 6X4 266HP Trailer Truck

Sinotruk Series 6x4 266hp Trailer Truck

1--------3171HP Engine 6X4 Tractor Truck

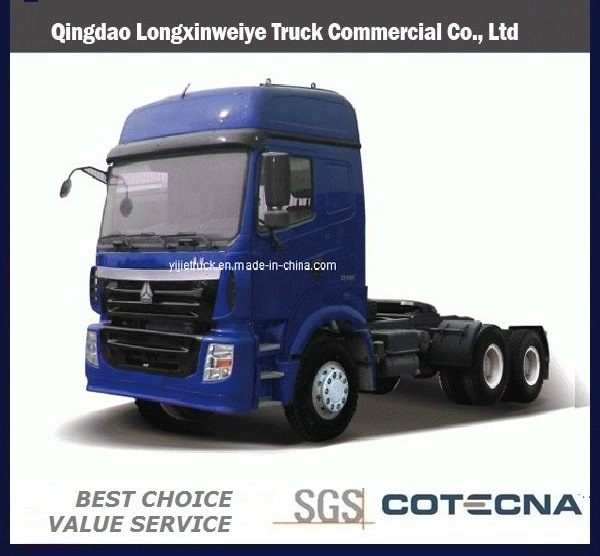

1. HOWO 6X4 Tractor ZZ4257S3241W, LHD;
2. Engine: WD615.47, 371HP, Euro II emission
3. Cab: HW76 length cab, with A/C, with one sleeper
4. Whole truck dimensions: 6800x2496X2958 mm =50.2m3
5. Dead weight: 91800kgs,
6. Gross vehicle weight: 25000kgs
7. Total weight of trailer: 39800kgs
8. Transmission: 10 speeds (HW15710)
9. Front axle: HF9 drum, rated loading 9t
10. Rear axle: HC1697 single reduction driving axle
11. Rim/Tyres: 12.00-20 bias tire
12. Brake: With ABS system
13. Wheelbase(front/rear): 2022/1850mm;
14. Max speed: 102 km/h
15. Fuel type: Diesel
16. Fuel Tank: 400L

2--------336HP Engine 6X4 Tractor Truck

1. HOWO 6X4 Tractor ZZ4257N3241W, LHD;
2. Engine: WD615.69, 336HP, Euro II emission
3. Cab: HW76 length cab, with A/C, with one sleeper
4. Whole truck dimensions: 6800x2496X2958 mm =50.2m3
5. Dead weight: 91800kgs,
6. Gross vehicle weight: 25000kgs
7. Total weight of trailer: 39200kgs
8. Transmission: 10 speeds (HW15710)
9. Front axle: HF9 drum, rated loading 9t
10. Rear axle: HC16 double reduction driving axle
11. Rim/Tyres: 12.00-20 bias tire
12. Brake: With ABS system
13. Wheelbase(front/rear): 2022/1850mm;
14. Max speed: 102 km/h
15. Fuel type: Diesel
16. Fuel Tank: 400L

3--------290HP Engine 6X4 Tractor Truck

1. HOWO 6X4 Tractor ZZ4257M3241W, LHD;
2. Engine: WD615.87, 290HP, Euro II emission
3. Cab: HW76 length cab, with A/C, with one sleeper
4. Whole truck dimensions: 6800x2496X2958 mm =50.2m3
5. Dead weight: 91800kgs,
6. Gross vehicle weight: 25000kgs
7. Total weight of trailer: 32400kgs
8. Transmission: 10 speeds (HW15710)
9. Front axle: HF9 drum, rated loading 9t
10. Rear axle: HC16 double reduction driving axle
11. Rim/Tyres: 12.00-20 bias tire
12. Brake: With ABS system
13. Wheelbase(front/rear): 2022/1850mm;
14. Max speed: 102 km/h
15. Fuel type: Diesel
16. Fuel Tank: 400L

Cab	HW76
	Single sleeper with AC
	Left Hand Drive
Cargo body size
Length	6200 mm		6500 mm		6800 mm
Width	2300 mm		2300 mm		2300 mm
Height	1200(1500) mm		1200(1500) mm		1200(1500) mm
Volume	17.11(21.39) M 3		17.94(22.43) M 3		18.77(23.46) M 3
Steel Thickness
Bottom	8 mm			8 mm
Side	4 mm			4 mm
Dimensions
Length	9145 mm		9445 mm		9745 mm
Width	2496 mm		2496 mm		2496 mm
Height	3237 mm		3190 mm		3170 mm
Wheel base	1800+2800+1350 mm		1800+3000+1350 mm		1800+3200+1350 mm
Gross Weight	31000 kg		31000 kg		31000 kg
Use	Construction garbage Stone Rock Gravel Sand			Big Stone Big Rock Big Gravel Big Sand
Engine	WD615-energy-efficient EURO 2- produced by Sinotruk
