Beiben 4x2 Tractor Head/ Northbenz Trailer
- USD 36800.58 /Unit
- 1 Unit
- 75 Unit
- 25 days
Product Description

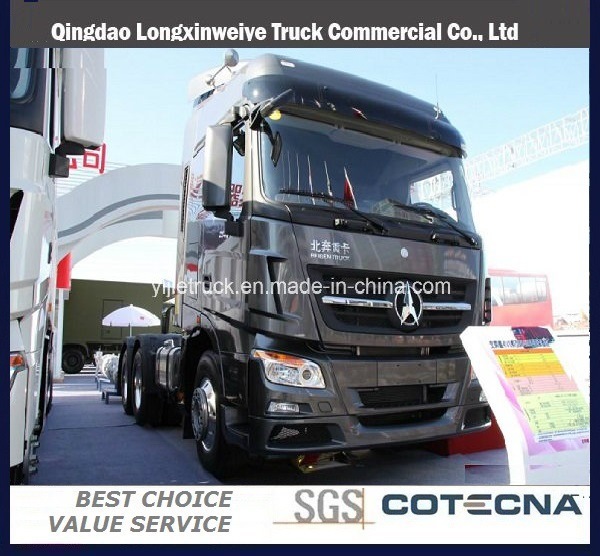

Beiben 4x2 Tractor Head/ Northbenz Trailer
Top quality famous North Benz tractor head. Mercedes Benz technology, excellent performance, resonable price.
Certificate: ISO9001, CCC, GBJ9001A-2001
Traction type: 6x4
Driving type: LHD(RHD is optioned)
Cabin:
North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine model: WP10.380E32 EURII EGR
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 11.596 liters
Max. Output: 380HP@353kW
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS200T), manual, 12-forward and 2 reverse speeds
Steering:
TAS85
Brake system:
Double-circulate brake system
Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare
Spring:
13/13
Fuel tank capacity (L):
400
Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg
Dimensions:
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800
Max. Length(mm): 6935
Max. Width(mm): 2495
Max. Heigh(mm): 3340
Performance:
Max. Speed (km/h): 100
Approach angle: 20 degree
Departure angle: 64 degree
Max. Gradeability(%): 30
Fifth Wheel: 50#
1. After-sale Service
Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
2. Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
3. For more details, please just feel free to contact me.
Top quality famous North Benz tractor head. Mercedes Benz technology, excellent performance, resonable price.
Certificate: ISO9001, CCC, GBJ9001A-2001
Traction type: 6x4
Driving type: LHD(RHD is optioned)
Cabin:
North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine model: WP10.380E32 EURII EGR
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 11.596 liters
Max. Output: 380HP@353kW
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS200T), manual, 12-forward and 2 reverse speeds
Steering:
TAS85
Brake system:
Double-circulate brake system
Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare
Spring:
13/13
Fuel tank capacity (L):
400
Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg
Dimensions:
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800
Max. Length(mm): 6935
Max. Width(mm): 2495
Max. Heigh(mm): 3340
Performance:
Max. Speed (km/h): 100
Approach angle: 20 degree
Departure angle: 64 degree
Max. Gradeability(%): 30
Fifth Wheel: 50#
1. After-sale Service
Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
2. Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
3. For more details, please just feel free to contact me.
Beiben 10 Wheels Tractor Truck | ||
Dimension | 7136*2495*3180mm | |
Approaching angle/Departure angle | 26/64° | |
Overhang(front/rear) | 1410/825mm | |
Wheel base | 3450+1450mm | |
Max speed | 90km/h | |
Curb weight | 9200kg | |
Max towing weight | 70000kg | |
Max loading on fifth wheel, Permitted(kg) | 15670kg | |
Slope climbing capability | Max.40% | |
Engine | Model | WP10.380,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement | 9.726L/Diesel | |
Stroke | 126/130mm | |
Max. power | 280/2200 (kw/rpm) | |
Max.torque | 1460/1200-1600(Nm/rpm) | |
Emission stantard | Euro II | |
Fuel tanker capacity | 400L | |
Clutch | 430, Single dry frictional disc,Hydraulic boosting | |
Gearbox | 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated | |
Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |
Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake | Engine exhaust brake | |
Park brake | Potential springs pressing on middle and rear wheels | |
Steering system | ZF8098,whole circulation in ball, hydraulic booster | |
frame | Fish belly shape, variable width, variable sections | |
Model | JOST 90 single direction | |
Height of fifth wheel(mm) (unload) | 1410 | |
Radius of front gap (mm) | 2300 | |
Radius of rear slew (mm) | 2600 | |
Front axle (Germany Technology) | Double-shoe pneumatic brake, non-driving steering axle | |
Middle and Rear axle (Germany Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |
Tyre | 12.00R20 | |
Electrical system | Battery | 2X12V/135Ah |
Generator | 28V-35A | |
Starter | 5.4Kw/24V | |
Cabin | NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
