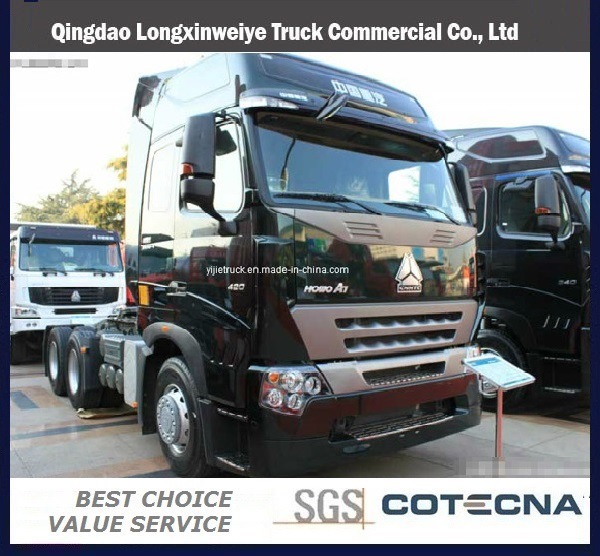

2016 Sinotruk HOWO A7 Tractor Truck
- USD 36980.00 /Unit
- 1 Unit
- 13 Unit
- 30 days
Product Description
Sinotruk HOWO A7 Tractor Truck
SINOTRUK 6X4 Tractor Head
ZZ4257S3241V
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, flat head, double sleepers, tippable, high-roof
Engine brand: Sinotruk(Steyr technology)
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 371HP@2200RPM
Max torque: 1100-1600
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh
Gear box
Model: HW79
No. Of speeds: 9 forward, 1 reverse
Forward ratio: 12.42, 8.29, 6.08, 4.53, 3.36, 2.47, 1.81, 1.35, 1.00
Reverse ratio: 12.99
Clutch: 430 Diaphragm type
Steering: ZF8098 integral type power-steering
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39800kg
Max load on 5th wheel: 15690kg
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree
SINOTRUK 6X4 Tractor Head
ZZ4257S3241V
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, flat head, double sleepers, tippable, high-roof
Engine brand: Sinotruk(Steyr technology)
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 371HP@2200RPM
Max torque: 1100-1600
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh
Gear box
Model: HW79
No. Of speeds: 9 forward, 1 reverse
Forward ratio: 12.42, 8.29, 6.08, 4.53, 3.36, 2.47, 1.81, 1.35, 1.00
Reverse ratio: 12.99
Clutch: 430 Diaphragm type
Steering: ZF8098 integral type power-steering
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39800kg
Max load on 5th wheel: 15690kg
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree
Name | Promotion Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine | |
Dimension(LXW)mm | 6865x2480 mm | |
Height | 3210 mm | High-floor standard cab (without air spoiler) |
3540 mm | High-floor standard cab (with air spoiler) | |
3745 mm | High-floor high-roof cab (without air spoiler) | |
3850 mm | High-floor high-roof cab (with air spoiler) | |
Front overhang/rear overhang | 1540/750, 725 mm (HW16 driving axle) | |
Wheelbase | 3200+1400 (HW16 driving axle) /3225+1350 mm | |
Track | Track front | 2022 mm |
Track rear | 1830 mm | |
Cab | Brand-new a7 cab, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror | |
Engine | Sinotruk's new D12 series engine; Turbocharged with inter-cooling; High-pressure common-rail fuel injection system with maximum pressure of 1600bar; NationalIII emission standard; Power range: 340-460hp; D10 series engine as option | |
Clutch | Sinotruk's 430 diaphragm spring clutch | |
Gear box | Sinotruk's 19710 | |
Front axle | New HW07 single reduction driving axle; ST16 duoble reduction drive axle as option | |
Rear axle | HW single reduction drive axle; ST16 double reduction drive axle as option | |
Tire | 315/80R22.5 tubeless tire | |
Brae system | Front disc rear shoes brake, four-circuit protection valve, EVB brake actuator, ABS+ASR+EBL+TPM | |
frame | High-strength single U-profile frame with a section of 300*90*8 | |
Electrical system | 24V, CAN bus intellectual electronic control system |
Product Images
