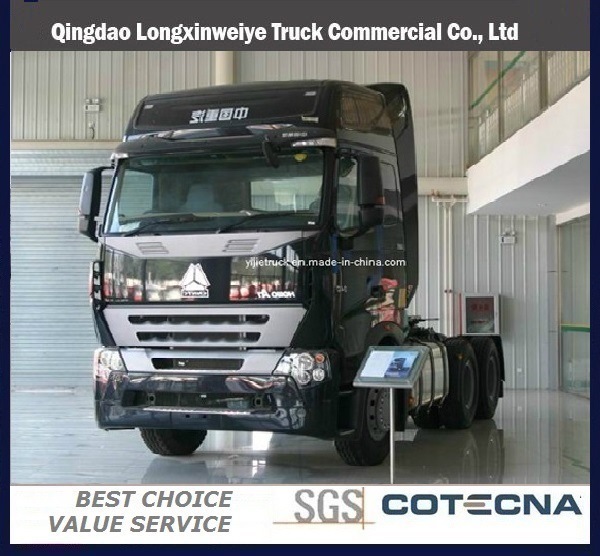

Cnhtc Sinotruck HOWO 380HP 6X4 Trailer Truck (ZZ4257N3247N1B)
- USD 38000.00 /Unit
- 1 Unit
- 17 Unit
- 28 days
Product Description
Cnhtc Sinotruck HOWO 380HP 6x4 Tractor Truck/Trailer Truck (ZZ4257N3247N1B)
Brand: Sinotruk-HOWO A7
Cab: A7-G/p, 2 seats with 2 beds or 1 bed, electric winodw and mirrors
Engine: 371HP
Transmission: 10 forward and 2 reverse
Front axle: HF7/HF9, loading capacity: 7000kgs/9000kgs
Driving axle: ST16/HC16, loading capacity: 2*16000kgs
Tire: 12.00R20 12R22.5 315/80R22.5
This tractor truck can be used to carry 40' container semi-trailer, low-bed semi-trailer, dump trailer and so on.
Brand: Sinotruk-HOWO A7
Cab: A7-G/p, 2 seats with 2 beds or 1 bed, electric winodw and mirrors
Engine: 371HP
Transmission: 10 forward and 2 reverse
Front axle: HF7/HF9, loading capacity: 7000kgs/9000kgs
Driving axle: ST16/HC16, loading capacity: 2*16000kgs
Tire: 12.00R20 12R22.5 315/80R22.5
This tractor truck can be used to carry 40' container semi-trailer, low-bed semi-trailer, dump trailer and so on.
Cnhtc Sinotruk HOWO 380HP 6X4 tractor truck/trailer truck(ZZ4257N3247N1B | |
Engine | Maker: SINOTRUK |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |
Engine model: D10.3 8 EURO III | |
Max. output: 3 80 hp@2200rpm | |
Equipped with Silicon oil fan | |
Engine Brake: EV B | |
Brake power: 230-250hp | |
Clutch | Φ 430B pull-type diaphragm clutch |
WABCO | ABS+ASR+EBL+TPM |
Transmission | SINOTRUK HW1 8 710 (mechanical type) |
Front Axle | HF7 road-use front axle, 7 tons loading capacity, plate (disc) brake |
Rear Axle | HW1697 (HOWO strengthened axle, double reduction driving axle) |
Ratio: 3.7 3 (4.22 are optional) | |
Chassis | Front overhang (mm): 15 40 |
Rear overhang (mm): 845/870 | |
Wheel base (mm): 3225+1350 | |
Front track (mm): 2022 | |
Rear track (mm): 1830/1830 | |
Steering | ZF8098 integral type power-steering |
Wheel & Types | 315/80R22.5 tubeless tire |
Spring suspension: 4/12, 9/12, 4/- | |
Driver' s cab | A7-P , low roof with one sleeping bed. Air seats... Electricwindow lift. VDO music system (CD with USB interface). Double sleepers. Electric cab lifting system. BEHR A/C. |
Dimensions in ( mm ) | Dimension(mm): 6985*2496*3850 |
Max speed: 101 km/h | |
Max. gradeability(%): 25 | |
Approach angle: 15 degree | |
Departure angle: 46 degree | |
5th wheel: 3.5 " | |
weight | Kerb. mass: 8 800kg |
Total mass: 25 000kg | |
Max towing load: 4 0 000kg | |
Fuel tank capacity (L): 400L Aluminium alloy | |
Fuel consumption (L/100km): 36 |
