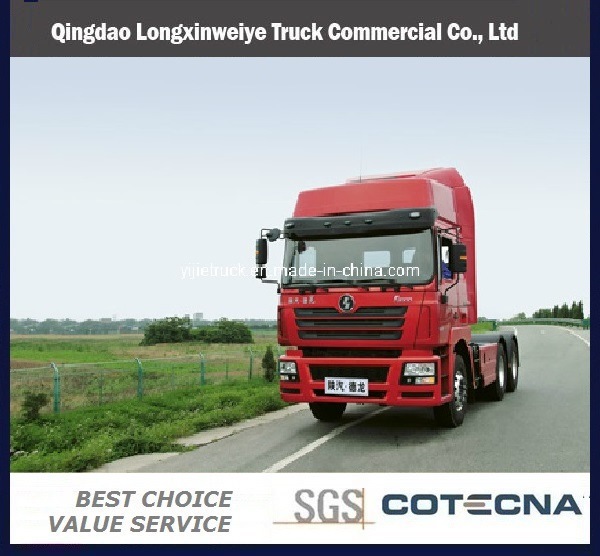

Shacman 4X2 Tractor Trailer (SX4184NM351)

Shacman Tractor Head 4x2 (SX4184NM351)

1) Engine model: WD615.50/34/38 (280/340/380HP)
2) Clutch: 430 Diaphragm
3) Transmission: Fuller
6) Steering: Zf technology
9) Maximum driving speed: 85km/h
11) Minimum ground clearance: 298mm
13) Fuel consumption: 36L/100km
14) Rated traction weight: 35, 500kg
15) Maximum loading capacity at fifth wheel: 18, 000kg
16) Dead weight: 7, 210kg
17) Gross vehicle weight: 19, 000kg
18) Front axle loading capacity: 6, 500kg
19) Gross combination weight: 55, 000kg
20) Rear axle loading capacity: 13, 000kg
21) Wheelbase: 3, 500mm
22) Front wheel track: 1, 939mm
23) Rear wheel track 1, 800mm
24) Front overhang: 1, 576mm
25) Rear overhang: 1, 110mm
26) Approach angle: 15 degrees
27) Departure angle: 42 degrees
28) Overall length: 6, 110mm
29) Overall width: 2, 496mm
30) Overall height: 3, 958mm
31) Coupling kingpin diameter (mm): 50#/90#

D' Long 4x2 tractor unit
Model	SX4164JM351	SX4184NM351	SX4184NP351	SX4184JR351
Drive Type	4x2
Steering	LHD (RHD is optional)
Cabin	MAN cab normal roof (one sleeper)	MAN cab high roof (double sleeper)		MAN cab normal roof (Single sleeper)
Engine brand	STEYR (Weichai) CUMMINS,
Engine model	WD615.50		WD12.336
Engine type	4-stroke direct injection diesel engine, inline 6-cylinder with water cooling, turbo-charging & intercooling
Displacement	9.726 liters		11.596 liters
Max. output	280hp@2200rpm		336hp@2200rpm
Max torque	1160NM@1100-1600rpm		1300NM@1200-1650rpm
Bore/Stroke(mm)	126/130		126/155
Specific fuel consumption	198g/Kwh		195g /Kwh
Gear box
Model	Fuller 9-speed (9JS119)		Fuller 12-speed (12JS160T)
Clutch	D430 Diaphragm type
Steering System	ZF technology
Front axle	MAN technology 7.5ton front axle
Rear axle	Steyr strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock)
frame	300mmx80mmx 8mm (inner: 275mm×70mm×5 mm)
Tyre	12.00-20 (rim: 8.5-20) option: 1100R20, 1200R20
Spring	9/12, 10/12	9/9+6, 9/10+6
Fuel consumption (L/100km)	38	36
Fuel tank capacity (L)	380
Max. speed (km/h)	92
Max. gradeability (%)	28
Curb weight	7050 kg	6495 kg	6945 kg
Total Mass	34820kg	29900kg	31000kg	35900kg
Wheel base (mm)	3500
Front overhang (mm)	1525
Rear overhang (mm)	1110	1105	1105	1110
Front track (mm)	1939
Rear track (mm)	1800	1800/2035	1800/2035	1800
Turning circle diameter (m)	14.2 m
Approach angle	26°
Departure angle	42°			66°
Dimension (mm)	6135X2490x3160	6130x2490x3646		6135x2480x3210
5th wheel	2.5"(3.5" is optional)			2.0"(3.0" is optional)
