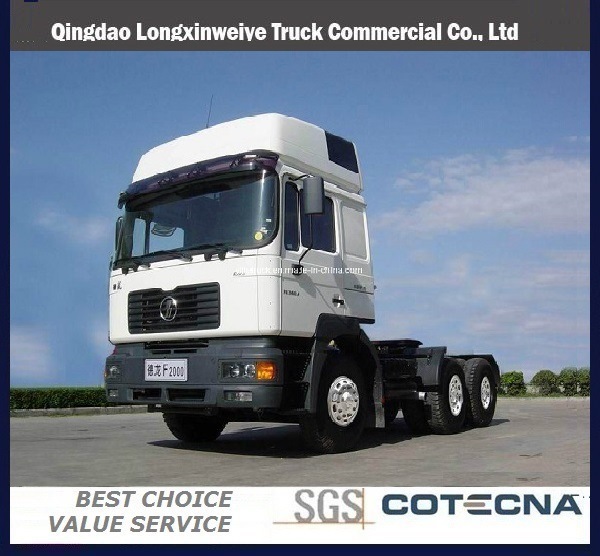

Shacman D′long 6X4 Truck Head Trailer

Shacman D'long 6x4 Truck Head Trailer



Cabin: MAN cab extra widthened extra lengthened normal proof
Engine brand: Steyr (Weichai) 280HP-460HP

Gear box:

Model: Fuller 12 speeds (12JS160T)

Traction type		6×4
Drive System		LHD
Cabin		F3000 high cab, air conditioner ,two sleepers
Engine	Brand	CUMMINS
	Model	ISME385 30 Euro3
	Rated power	385hp
	Engine displacement	10.8 liters
Gearbox		12JSD180T
Clutch		430 Diaphragm type
Steering		ZF technology
Axle	Front	7.5ton MAN
	Rear	13ton MAN, double reduction axle, ratio:4.266
Max. running speed (km/h)		99
Tire		12.00R20
Spring		4/12,9/12,4/-
Fuel tank		400L(aluminum with fuel burglar alarm)
Kerb weight (kg)		8800
Total mass (kg)		25000
Chassis frame(mm)		850×300(8+5)
Wheel base (mm)		3175+1400
Overhang (mm) (front/rear)		1525/725
Track (mm) (front/rear)		2036/1800
Approach / departure angle(°)		20/66
Overall Dimensions(L*W*H)(mm)		6825×2500×3750
5 th wheel		90#
