HOWO 6X4 380HP 80ton Capacity Tractor Truck

  • HOWO 6X4 380HP 80ton Capacity Tractor Truck
  • USD 34500.00 /Unit
  • 1 Unit
  • 60 Unit
  • 24 days
Product Description
HOWO 6x4 380HP 80ton Capacity Tractor Truck

1. HOWO tractor truck 6x4 type
2. based on Steyr technology
3. WD615 STR engine (336, 375, 420HP)
4. Strong chassis for heavy mission
5. HW19710 transmission
6. ZF8098 steering
7. Timely delivery
Model
CabinFour point s suspension Howo Cabin with spring and air shock absorber, A/C, Adjustable steering, Sun cover
EngineType: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:371HP/273KWSTEYR technology(CNHTC)
Displacement(L):9.726liter (Euro 2 standard)
Max torque:1500NM@1100-1600rpm
Bore/stoke:126mm/130mm
Fuel consumption:193g /kwh
Gear boxCNHTCMax torque:1900NM
Model:HW19710
Speed:10speed, 2 reverse
Axle(front/rear)
Front axleHF7 STEYR technology front steering axle
TandemHW1697 double reduction hub reductor driving axle
ClutchD430 diaphragm type clutch
BrakeService brake: Dual lines air brake
Parking brake: Spring-Power drum brake
Engine brake: Engine exhaust brake(EVB)
SteeringZF8098, driver sit at the left hand side
Electric Equipment
Operating voltage:24Vnegative grounded
Starter:24V,5.4KW
Alternator28V,758W
Battery voltage12V/135Ah,cigar lighter
frameStrengthen steel frame, designed according to tough road condition.
Tyre10+1 spare tyre with rim
12.00-20
Suspension system: Strongthen heavy duty Leaf spring type
Front/Rear9/12
Overall dimension(mm): 6800 x 2496 x 3000(Length x width x height)
Wheelbase3225+1350mm
Track:
Front/Rear2041/1830
Approach/Departure angle16/70
Front /Rear overhang1500/725
Max speed90km/h
Kerb weight:9180kg
Oil tank capacity400L fuel tank
Product Images

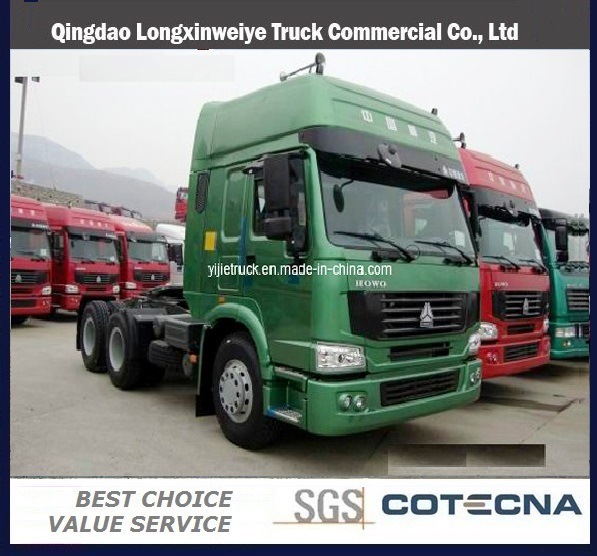

HOWO 6X4 380HP 80ton Capacity Tractor Truck Images 1
