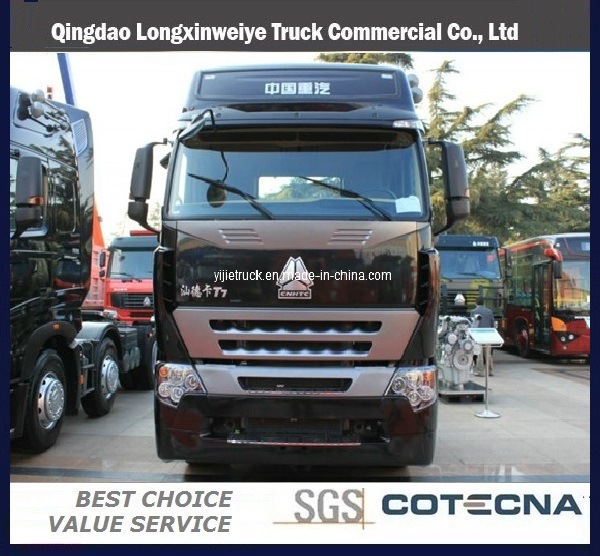

HOWO A7 420HP Euro II 6X4 Tractor Head
- USD 37500.00 /Unit
- 1 Unit
- 97 Unit
- 20 days
Product Description
HOWO A7 420HP Euro II 6x4 Tractor Head
Engine
Manufacturer: SINOTRUK
Disel: 4-Stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and intercooling
Engine model: STEYR, Euro II, D12.420
Maximum output: 420HP(309kW)at 2200 rpm according to DIN
Maximum torque: 2050Nm at 1100-1600 rpm
Displacement: 9.726L
Bore: 126mm Stroke: 130mm
Clutch
Φ 430diaphragm spring clutch A-type, hydraulically operating with air assistance
Transmission
HW19710 10 Forward& 2 Reverse
Driving axle
ST16 Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheel
Front Axle
HF 7 Steering with double T-cross section beam
Chassis
frame: U-profile parallel ladder frame with section of 850× 80× 8mmand reinforced subframe, all cold riveted cross members
Rear suspentsion: 12 leaf semi-elliptic springs, and bogie springs, and stabilizer
Fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering
Model ZF8098, hydraulic steering with power assistance
Braking System
Service brake: Dual circuit compressed air brake
Parking brake(emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Wheel & Tyres
315/80R22.5 Tubless tyre
No. Tire: 10+1 spare
Dimensions in mm
Wheel base: 3225+1350
Front wheel track: 2022
Rear wheel track: 1830
Front overhang: 1500
Rear overhang: 1870
Approach angle(° )19
Departure angel(° )23
Overall length: 6990
Overall width: 2496
Overall height: 3686
Weight in kg
Kerb weight: 8270
Front axle loading capacity: 7000
Rear axle loading capacity: 16000x2
Performance
Maximum driving speed(km/h): 120
Maximum grade ability(%): 30.
Engine
Manufacturer: SINOTRUK
Disel: 4-Stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and intercooling
Engine model: STEYR, Euro II, D12.420
Maximum output: 420HP(309kW)at 2200 rpm according to DIN
Maximum torque: 2050Nm at 1100-1600 rpm
Displacement: 9.726L
Bore: 126mm Stroke: 130mm
Clutch
Φ 430diaphragm spring clutch A-type, hydraulically operating with air assistance
Transmission
HW19710 10 Forward& 2 Reverse
Driving axle
ST16 Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheel
Front Axle
HF 7 Steering with double T-cross section beam
Chassis
frame: U-profile parallel ladder frame with section of 850× 80× 8mmand reinforced subframe, all cold riveted cross members
Rear suspentsion: 12 leaf semi-elliptic springs, and bogie springs, and stabilizer
Fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering
Model ZF8098, hydraulic steering with power assistance
Braking System
Service brake: Dual circuit compressed air brake
Parking brake(emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Wheel & Tyres
315/80R22.5 Tubless tyre
No. Tire: 10+1 spare
Dimensions in mm
Wheel base: 3225+1350
Front wheel track: 2022
Rear wheel track: 1830
Front overhang: 1500
Rear overhang: 1870
Approach angle(° )19
Departure angel(° )23
Overall length: 6990
Overall width: 2496
Overall height: 3686
Weight in kg
Kerb weight: 8270
Front axle loading capacity: 7000
Rear axle loading capacity: 16000x2
Performance
Maximum driving speed(km/h): 120
Maximum grade ability(%): 30.
Length | 6865 mm | |
Width | 2480 mm | |
Height | 3210 mm | High-floor standard cab (without air spoiler) |
3540 mm | High-floor standard cab (with air spoiler) | |
3745 mm | High-floor high-roof cab (without air spoiler) | |
3850 mm | High-floor high-roof cab (with air spoiler) | |
Front overhang/rear overhang | 1540/750, 725 mm (HW16 driving axle) | |
Wheelbase | 3200+1400 (HW16 driving axle) /3225+1350 mm | |
Track | Track front | 2022 mm |
Track rear | 1830 mm | |
Cab | Brand-new a7 cab, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror | |
Engine | Sinotruk's new D12 series engine; Turbocharged with inter-cooling; High-pressure common-rail fuel injection system with maximum pressure of 1600bar; NationalIII emission standard; Power range: 340-460hp; D10 series engine as option | |
Clutch | Sinotruk's 430 diaphragm spring clutch | |
Gear box | Sinotruk's 19710 | |
Front axle | New HW07 single reduction driving axle; ST16 duoble reduction drive axle as option | |
Rear axle | HW single reduction drive axle; ST16 double reduction drive axle as option | |
Tire | 315/80R22.5 tubeless tire | |
Brae system | Front disc rear shoes brake, four-circuit protection valve, EVB brake actuator, ABS+ASR+EBL+TPM | |
frame | High-strength single U-profile frame with a section of 300*90*8 | |
Electrical system | 24V, CAN bus intellectual electronic control system |
Product Images
