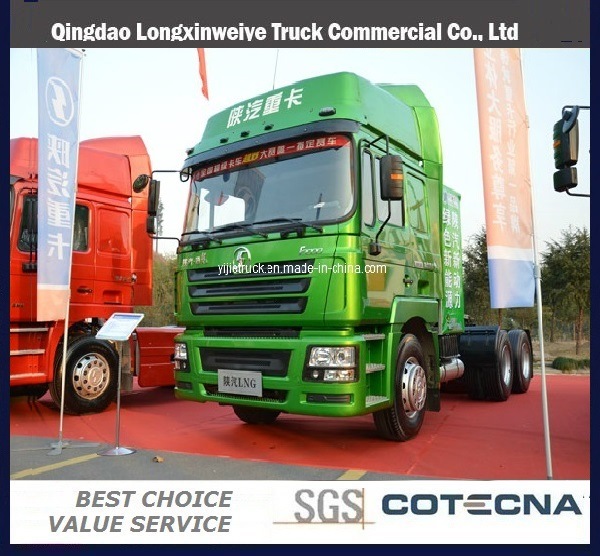

Shacman 6X4 Man Diesel Tractor Trailer Truck

Shacman 6x4 Man Diesel Tractor Trailer SX4254NX294C
Model: SX4254NX294C
Traction type: 6x4
Driving type: LHD (RHD is optioned)
Cabin: MAN cab F2000 widened and lengthened high-roof, with A/C.

Engine brand: Cummins
Engine model: ISM440E 20
Displacement: 11 L
Max. Output: 440HP@1800rpm
Max torque: 2100NM@1200rpm
Bore/Stroke (mm): 125/147

Gear box:
Model: Fuller 12 speeds Model: 12JS210T

Clutch:
Model: D430 Diaphragm type

Steering: ZF8098
Front axle: MAN technology 7.5ton front axle
Rear axle: Steyr strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)
Tyre: 12.00R24 (rim: 8.5-24)
Spring: 9/12, 10/12
Fuel consumption (L/ 100km): 32
Fuel tank capacity (L): 400
Max. Speed (km/h): 92
Max. Gradeability(%): 40
Kerb. Mass: 9000 kg
Total mass: 39800kg
Wheel base (mm): 2925+1350
Front overhang (mm): 1525
Rear overhang (mm): 800
Front track (mm): 1939
Rear track (mm): 1800
Turning circle diameter: 14.2 m
Approach angle: 16 degree
Departure angle: 66 degree
Dimension (mm): 6600x2490x3750
5th wheel: 3.5Inch

We can supply kinds of service to customers according to customers' request:
1- Spare parts supply: We have the professional spare part department, with the experienced engineers, we can supply you original spare parts and punctual service;

2- SKD services: For many contries, the freight by RORO/BULK vessel is very expensive while by container it will be much cheaper. In order to save the cost on freight for customers, we can supply you SKD services so that the trucks can be put into containers (40HQ).

Model	SX4257NX294C
DriveType	6x4LHD(RightHandDriveISOPTIONAL)
Cab	Type	LongCabin(REDColor)
	Equipment	withAirCondition,twosleepers
Weight	Kerbmass(kg)	8870
	GVW(kg)	8870+32700
Dimensions	Max.length(mm)	6825
	Max.width(mm)	2490
	Max.height(mm)	3310
	Front/Rearoverhang(chassis)	1515/1085
	Wheelbase(mm)	3170+1400
	Trackwidth(mm)	2035/1808
Performance	Max.speed(km/h)	90±10
	Max.gradeability(%)	30
	Approach/Departureangel	26°/32°
Engine	Brand	WEICHAIBRANDBOSCHTECHNOLOGY Diesel:4strokedirectinjectiondieselengine,6cylinderin-linewithwatercooling,turbo-charging&intercooling
	Model	WP10series
	Power(kw/hp)	200-310kw/290-420hp
	Maxtorque(N.M)/rpm	1100-1920/1400--1600
	Displacement(L)	9.726
	EmissionStandards	EuroIII
Transmission	Brand	FULLER
	Model	9JS13512JSD160TA
	Controltype	Manual
	GearShift	9/12-forward&1/2-reversespeeds
Clutch	Type	Singleplate,diaphragmspring
	Diameter(mm)	Φ430
	Action	hydraulicallyoperatingwithairassistance
Brakes	Type	Drum
	ServiceBrake	Withdual-circuitcompressedairbrake
	ParkBrake	Powerspringbrakeactingonrearwheel
	AuxiliaryBrake	WEVB
	ABS	ABS(Anti-lockBrakeSystem)
Steering	Type	ZFTechnology(GERMANZFTechnology)
Chassis	Type	Ladderstructurewithparallelstraight
	Dimensions(mm)	300x90x8+6+8
Suspension	Front	Longitudinalleafspring
	Rear	Invertedleafspringstabilizatorsuspension
Axles	Brand	HAND
	Front	MANTECHNOLOGY:7.5tondrumaxle
	Rear	MANTECHNOLOGY:13tonstrengthenedaxle,doublereductiondrivingaxlewithinter-wheeldifferentialanddifferentiallock
	Ratio	4.625
Tyre	Type	12.00R20radialtire
Fueltank	Tankcapacity(L)	400
	Material	Plastic(Option: Aluminiumalloy )
Electrics	Type	24V
	Starter	5.58kw(24)
	Generator	2.0kw(28V70A)
	Battery	2x135Ah
