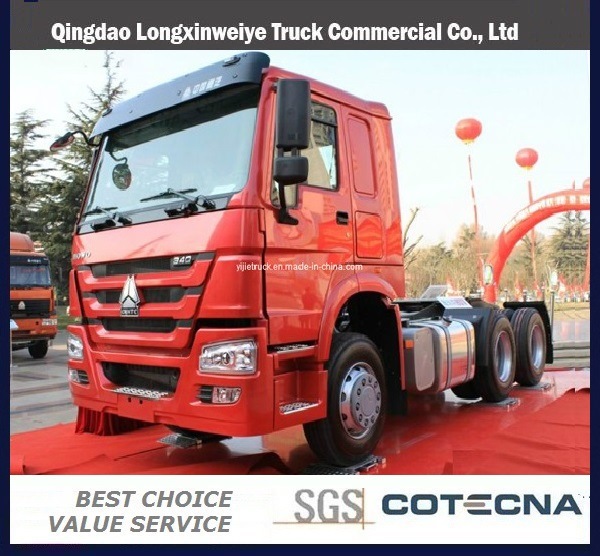

Sinotruk HOWO 6X4 Prime Move Tractor (ZZ4257N3241W)
- USD 36800.00 /Unit
- 1 Unit
- 51 Unit
- 12 days
Product Description
Sinotruk HOWO 6x4 Prime Move/Tractor Head(ZZ4257N3241W)
Cabin: HOWO cab, flat head, double doors, tippable, normal-roof
Engine brand: Sino truck
Engine model: WD615.69
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Gear box:
Model: Fuller 9 speeds
Clutch:
Model: GF420 Spring type
Steering: ZF technology
Front axle: HOWO front axle
Rear axle: HOWO 1697 drive axles
Tyre: 12.00-20 (rim: 8.5-20)
Spring: 9/12
Fuel consumption (L/100km): 36
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39200kg
Max load on 5th wheel: 15690kg
Wheel base (mm): 3225+1350/3200+1400
Front overhang (mm): 1500
Rear overhang (mm): 725/700
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree
Dimension (mm): 6800x2496x2958/3718
Cabin: HOWO cab, flat head, double doors, tippable, normal-roof
Engine brand: Sino truck
Engine model: WD615.69
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Gear box:
Model: Fuller 9 speeds
Clutch:
Model: GF420 Spring type
Steering: ZF technology
Front axle: HOWO front axle
Rear axle: HOWO 1697 drive axles
Tyre: 12.00-20 (rim: 8.5-20)
Spring: 9/12
Fuel consumption (L/100km): 36
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39200kg
Max load on 5th wheel: 15690kg
Wheel base (mm): 3225+1350/3200+1400
Front overhang (mm): 1500
Rear overhang (mm): 725/700
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree
Dimension (mm): 6800x2496x2958/3718
Engine brand | SINOTRUK HOWO 6X4 Prime Move/Tractor Head(ZZ4257N3241W) |
Engine model | WD615.96(C), 375hp |
Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line, water cooled, turbo-charging & intercooling |
Displacement | 9.726 liters |
Max. Output | 375hp@2200rpm |
Bore/Stroke | 126/130mm |
Compression ratio | 17: 01 |
Specific fuel consumption | ≤ 193g/kW. H |
Driver' s Cab (with A/C, one sleeper) | |
Type | HW76, Forward control cab, hydraulically tiltable by 60o |
Construction | Current standard all steel construction |
Instrument panel | Clearly visible |
Seats | Driver adjustable & passenger fixed |
Seat belts | For driver & passenger |
Glass | Tempered safety glass |
Sun visors | Dual, adjustable |
Mirrors | Large, truck type convex |
Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
Steering wheel | Adjustable steering wheel |
Horn | Air horn |
Panel | LCD Panel with LED light |
