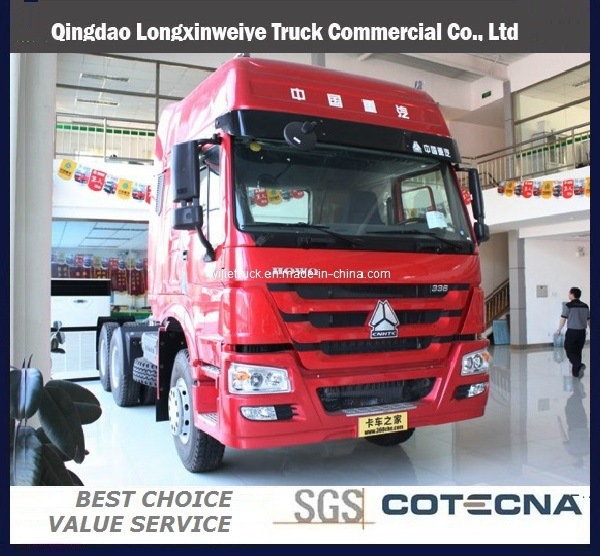

Sinotruk HOWO 290HP 6x4 Tractor Truck

SINOTRUK HOWO 290HP 6X4 tractor head

Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: HOWO cab HW79 ( high head, high-roof, double sleeper bed, A/C)

Engine
Engine brand: SINOTRUK BRAND
Engine model: WD615.50 290HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. Output: 290HP@2200rpm
Max torque: 1160NM@1100-1600rpm
Bore/Stroke (mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box
Gear box: HW13710

Clutch:
Clutch: Φ 430 pull-type diaphragm clutch

Steering:
Steering: ZF8098 integral type power-steering

Tyre
Tyre: 12.00-00
No. Of tyre: 10+1spare

Front axle: HOWO front axle 7ton
Rear axle: HW1697

Spring: 9/12
Fuel tank capacity (L): 400 Aluminium Alloy Tank
Max. Speed (km/h): 90
Kerb. Mass: 8800kg
Total mass: 25000kg
Max towing load: 40000kg
Wheel base (mm): 3225+1350
Front overhang (mm): 1500
Rear overhang (mm): 725
Front track (mm): 2022
Rear track (mm): 1830
Approach angle: 16 degree
Departure angle: 70 degree
Dimension (mm): 6800x2496x2958
5th wheel: 2.0" (3.5" is option)

The Basic Configurations and Main Specifications of Tractor truck(6×4,Euro2)
Model		ZZ4257M3241W(V)	ZZ4257N3241W(V)	ZZ4257S3241W(V)
	Model	HW 76(HW79)	HW 76(HW79)	HW 76(HW79)
Cab	Type	Cab with extended high floor,4-point floating air suspension+shock absorber+lateral stability device , single partible sleeper , driver seat with air suspension , adjustable steering wheel , Euro BEHR new overall air conditioning heater , VDO instrument,CAN bus and electric control system , safrty belt with double lock , the locks for electric lifting glass and rearview mirror are all in one , external sun shade , above fairing+side wind scooper , electronic handle accelerator
	Model	WD615.62(WD615.87)	WD615.69	WD615.447(D12.38)
	Output	266(290)	336	371(380)
Engine	Rated power kW/rpm	196/2200(213/2200)	247/2200	273/2200
	Max torque Nm/rpm	1160/1300-1600	1470/1300-1600	1590/1200-1500
	Displacement L	9.726	9.726	9.726
Clutch		Single-plate dry coil-spring clutch,diameter420mm,hydraulically operating with air assistance
Transmission		HW15710	HW15710	HW19710
Front axle		HF7,Specified load : 7 ton,disc or drum brake
Rear axle		HW1697
Suspension		Both front and rear suspension are plate spring +shock absorber+performance rod
Steering		ZF8098 Steering
Braking system		Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Electrical system		Operating voltage:24 V, negative grounded Starter:24 V,5.4Kw Alternator:3-phtase,28 V,1500 W Batteries:2×12 V,165Ah Cigar-lighter, horn, headlamps, fog lights, brake lights,indicators and reverse light
Wheel Tyre		12.00R20
Curb weight kg		9180	9180	9180
Gross mass kg		25000	25000	25000
Standard hang weight kg		28400	39200	39200
Rated capacity at the fifth wheel(kg)		1364	1364	1364
Overall dimension (L×W×H) mm		6800×2496×3719	6800×2496×3719	6800×2496×3719
Wheel base mm		3225+1350,3200+1400	3225+1350,3200+1400	3225+1350,3200+1400
Front/Rear overhang mm		1500/725	1500/725	1500/725
Min ground clearance mm		298	298	298
Approach/Departure angle °		16/70	16/70	16/70
Max speed km/h		102	102	102
Min turing diameter m		18.5	18.5	18.5
Pin specification		50# 2 inch	50# 2 inch	50# 2 inch
