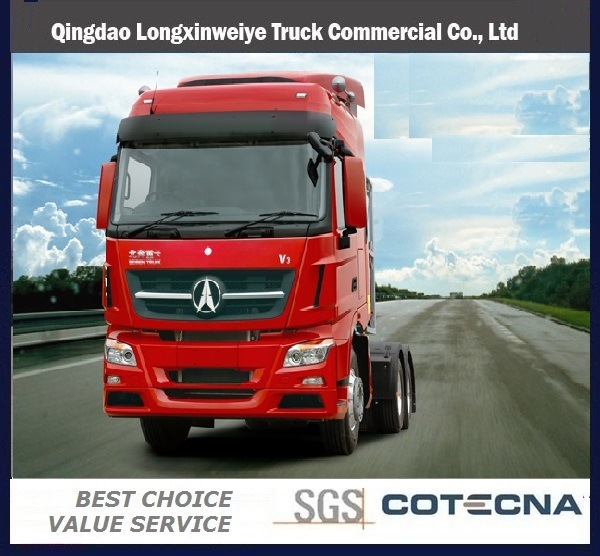

Beiben 4X2 240HP Tractor Head Trailer

Beiben 4x2 240HP Tractor Head Trailer
Engine model: WD615.58 240HP Euro II
Max. Output: 240HP@2200rpm
Beibenz 4X2 tractor head
Traction type: 4X2
Driving type: LHD (RHD is option)
Cabin: Mercedes Benz (One Sleeper)
Engine
Engine brand: Weichai
Engine model: WD615.58 240HP Euro II
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 240HP@2200rpm
Max torque: 1060NM@1100-1600rpm
Bore/Stroke(mm): 126/130

Specific fuel consumption: 198g/Kwh
Gear box
Gear box: 9JS119
Clutch: GF430 spring type
Steering: TAS85
Tyre
Tyre: 12.00R20
No. Of tyre: 10+1spare
Front axle: Benz
Rear axle: Benz ration 1: 4.7
Spring: 13/14
Fuel tank capacity (L): 330 Aluminium Alloy Tank
Max. Speed (km/h): 90
Kerb. Mass: 9000kg
Total mass: 25000kg
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800/1800
Approach angle: 20 degree
Departure angle: 64 degree
Dimension (mm): 6935X2495X3340

Model	ZZ4259N394CC1B
Engine	Model		WD615.96E
	Horsepower		375
	Max. output (kw)		276
	Torque (N.m)		1500
	Max torque speed		1600
	Emission standard		EUROII
Gear box	HW19712CL
Drive	6X4
Wheel base (mm)	3900+1400
Max. speed (km/h)	101
Track (mm)	Front track		2022/2041
	Rear track		1800/1800
Weight (kg)	Curb weight		8800
	Max. total weight		25000
Permissible load on rear axle(kg)	13000
Tire	Model	315/80R22.5
	Number	10
Dimension (mm)	Length	7430
	Width	2500
	Height	3530
Fuel tanker capacity(L)	400
Spring number	9/12
