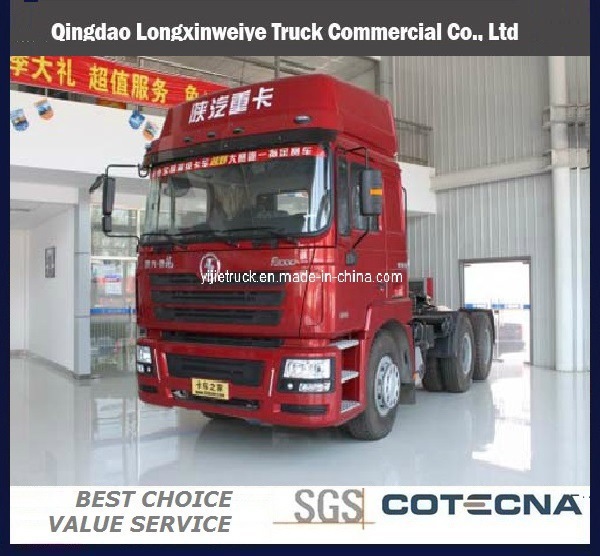

Shacman D′long F3000 Tractor & Trailer Head

Shacman D'long F3000 Tractor & Trailer Head

Traction type: 6x4
Driving type: LHD(RHD is option)
Cabin: MAN cab extra lengthened series extra widened with high-roof(A/C)

Engine
Engine brand: Steyr (Weichai)
Engine model: ISM345 30
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 345HP@2200rpm
Max torque: 1350N. M@1100-1600rpm
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m /s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g /Kwh

Gear box:
Model: Fuller 12 speeds (12J160T)

Clutch:
Model: D430 Diaphragm type

Steering: ZF technology

Front axle: MAN technology 7.5ton front axle
Rear axle: MAN16t driving axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Tyre
Tyre: 12.00-20

Spring: 9/12
Fuel consumption (L/ 100km ): 38
Fuel tank capacity (L): 380
Max. Speed (km/h): 92
Max. Gradeability(%): 28
Kerb. Mass: 9050 kg
Towed mass: 40000kg
Wheel base (mm): 2925+1350
Front overhang (mm): 1525
Rear overhang (mm): 800
Front track (mm): 1939
Rear track (mm): 1800
Turning circle diameter: 14.2 m
Approach angle: 16 degree
Departure angle: 66 degree
Dimension (mm): 6600x2490x3750
5th wheel: 2.5"(3.5" is optioned)

Vehicle Type	Tractor truck	Vehicle Model	SX4257NR324
Engine Model	WP12.340E32	Engine power (KW)	250
Engine capacity (L)	11.596	fuel type	diesel
Final gear ratio	4.266	Maximum speed (km/h)	99
Gear box type	FAST 10JSD140	Torque (N @ M)
Dimensions (LXWXH) (mm)	6825x2490x4000	Semi-trailer carrying saddles the maximum allowable weight (kg)
Gross Vehicle Weight (kg)	25000	Kerb Weight (kg)	9400
Approach angle /departure angle (°)		Regular revolving speed (RPM)
Wheel base (mm)	3175+1400	Trailer total mass (kg)	34270
Number of tire	10	Tyres	12.00R20
Front wheel track (mm)	2036	Rear wheel track (mm)	1800/1800
