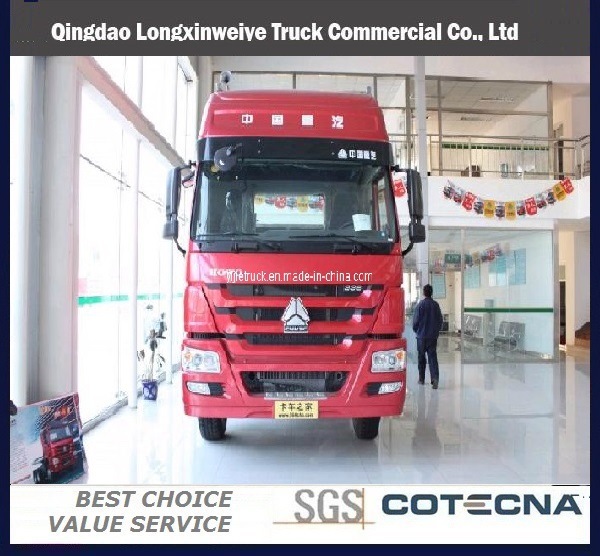

Sinotruk HOWO Series 6x4 Tractor Truck

Sinotruk HOWO Series 6x4 Tractor Truck


Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: HOWO cab HW79 (extra lengthen series extra widen with high-roof, double sleeper, A/C)

Engine
Engine brand: SINOTRUK BRAND
Engine model: WD615.69 336HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Max torque: 1250NM@1100-1600rpm
Bore/Stroke (mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box
Gear box: HW18709
Steering:
Steering: ZF8098 integral type power-steering
Tyre
Tyre: 12.00-20
No. Of tyre: 10+1spare
Front axle: HOWO front axle 7ton
Rear axle: HW1697
Spring: 9/12
Fuel tank capacity (L): 400 Aluminium Alloy Tank
Max. Speed (km/h): 90
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39200kg
Max load on 5th wheel: 15690kg
Wheel base (mm): 3225+1350/3200+1400
Front overhang (mm): 1500
Rear overhang (mm): 725/700
Front track (mm): 2022
Rear track (mm): 1830
Approach angle: 16 degree
Departure angle: 70 degree
Dimension (mm): 6800x2496x3718
5th wheel: 2.5" (3.5" is option)

Name	Promotion Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine
Dimension(LXW)mm	6865x2480 mm
Height	3210 mm	High-floor standard cab (without air spoiler)
	3540 mm	High-floor standard cab (with air spoiler)
	3745 mm	High-floor high-roof cab (without air spoiler)
	3850 mm	High-floor high-roof cab (with air spoiler)
Front overhang/rear overhang	1540/750, 725 mm (HW16 driving axle)
Wheelbase	3200+1400 (HW16 driving axle) /3225+1350 mm
Track	Track front	2022 mm
	Track rear	1830 mm
Cab	Brand-new a7 cab, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror
Engine	Sinotruk's new D12 series engine; Turbocharged with inter-cooling; High-pressure common-rail fuel injection system with maximum pressure of 1600bar; NationalIII emission standard; Power range: 340-460hp; D10 series engine as option
Clutch	Sinotruk's 430 diaphragm spring clutch
Gear box	Sinotruk's 19710
Front axle	New HW07 single reduction driving axle; ST16 duoble reduction drive axle as option
Rear axle	HW single reduction drive axle; ST16 double reduction drive axle as option
Tire	315/80R22.5 tubeless tire
Brae system	Front disc rear shoes brake, four-circuit protection valve, EVB brake actuator, ABS+ASR+EBL+TPM
frame	High-strength single U-profile frame with a section of 300*90*8
Electrical system	24V, CAN bus intellectual electronic control system
