HOWO 4X2 Tractor Head 371HP Trailer Truck

  • HOWO 4X2 Tractor Head 371HP Trailer Truck
  • USD 31980.43 /Unit
  • 1 Unit
  • 97 Unit
  • 23 days
Product Description
HOWO 4X2 Tractor Head 371HP/Trailer Truck

1)ISO approved tractor truck
2)Tractor truck with reliable quality
3)Great performance on power
SINOTRUK HOWO 4x2 Tractor Head:
Main features of HOWO tractor trucks:
[1] Driving type: 4x2 4x4 6x4 6x6 8x4 8x6
[2] Engine power: 266HP 290HP 336HP 371HP 380HP 420HP
[3] Clutch: Single-plate dry coil-spring clutch
[4] Propeller Shaft: Double universal jiont propeller shaft with gaer-shaped coupling flange
[5] Steering: ZFpower steering, model zf8098, hydraulic steering with power assistance.
[6] Cab: High roof cab, all-steel forward control, 2-arm windsreen wiper system

Technical parameters of HOWO 4x2 tractor truck:
Vehicle name
HOWO 4× 2 Tractor
Vehicle models
ZZ4187S3511W/SOWA (LHD)
Engine Model
WD615.62
Engine power (HP)
371
Emission standard
Euro 2
Steering
ZF8098 hydraulic steering with power assistance
Cab

HW76 HW79
Transmission
HW19710, 10 forward, 2 reverse
Overall dimensions(mm)
6110× 2496× 2958
Traction pin diameter (mm)
Φ 50.8
Total mass (Kg)
18000
Maximum traction(kg)
27400, 27900,
29700, 31000
Kerb weight (kg)
7210
Approach angle / departure angle (° )
16/42
Saddle max. Load weight(kg)
10660
Saddle terrain clearance(Load/Empty) (mm)
1246/1335
Wheelbase (mm)

3500
Front overhang / Rear (mm)
1500/1110
Maximum speed (km/h)
102
Axle-load(kg)
7000/11000
Tire number
6
Tire type
12.00-20, 11.00-20
12.00R20, 11.00R20
Front tread(mm)
2022 2041
Rear tread(mm)
1830
Beautiful and dynamic appearance:
NameSinotruk HOWO 6X4 Tractor Truck with 420HP Engine
Dimension(LXW)mm6865x2480 mm
Height 3210 mmHigh-floor standard cab (without air spoiler)
3540 mmHigh-floor standard cab (with air spoiler)
3745 mmHigh-floor high-roof cab (without air spoiler)
3850 mmHigh-floor high-roof cab (with air spoiler)
Front overhang/rear overhang1540/750, 725 mm (HW16 driving axle)
Wheelbase3200+1400 (HW16 driving axle) /3225+1350 mm
TrackTrack front 2022 mm
Track rear 1830 mm
CabBrand-new a7 cab, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror
EngineSinotruk's new D12 series engine; Turbocharged with inter-cooling; High-pressure common-rail fuel injection system with maximum pressure of 1600bar; NationalIII emission standard; Power range: 340-460hp; D10 series engine as option
ClutchSinotruk's 430 diaphragm spring clutch
Gear boxSinotruk's 19710
Front axleNew HW07 single reduction driving axle; ST16 duoble reduction drive axle as option
Rear axleHW single reduction drive axle; ST16 double reduction drive axle as option
Tire 315/80R22.5 tubeless tire
Brae systemFront disc rear shoes brake, four-circuit protection valve, EVB brake actuator, ABS+ASR+EBL+TPM
frameHigh-strength single U-profile frame with a section of 300*90*8
Electrical system24V, CAN bus intellectual electronic control system
Product Images

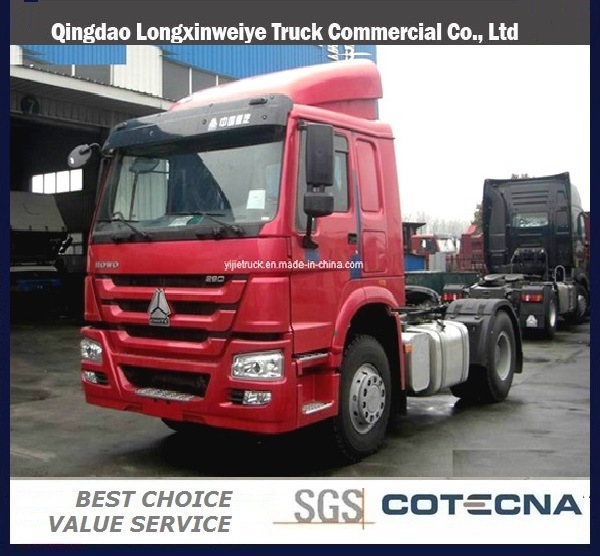

HOWO 4X2 Tractor Head 371HP Trailer Truck Images 1
