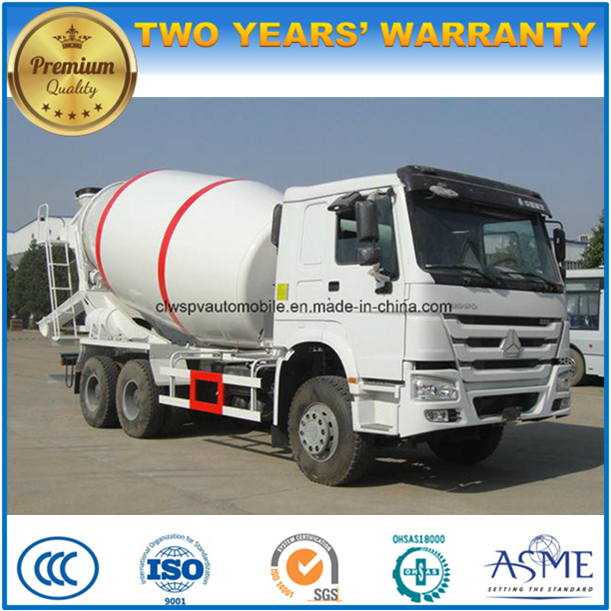

HOWO Concrete Mixer 9 M3 Cement Drum Mixer Truck for Export

Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.
Features of Sinotruk Mixer truck
1. HOWO 8 m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.
Specification

	Sinotruk cement mixer Truck
	Left hand drive with air conditioner
	Model		SL5251GJBA4
	Gross weight		kg	25000
	Curb Weight		kg	10870
	Overall Dimension		mm	9500x2490X3950
	Tank volume		m3	8-10
	Wheelbase		mm	3800+1350
	Axle load		kg	7000/18000
	Wheel Track	Front	mm	2050
		Rear	mm	1850
	Minimum Ground Clearance		mm	550
	Engine		ISLe320 30, water - cooled, 4 - stroke, direct injection, and intercooled
	Power		kW	195
	Engine manufacturer		China heavy duty Group Ltd
	Emission standard		Euro 2
	Transmission		Faster , 9+1
	Torque		1400N·m
	Maximum torque speed		1200-1400rpm
	Rated speed		1750rpm
	Fuel Consumption		L/100Km	28-33
	Fuel Tank Capacity		L	400
	Fuel type		Diesel
	Tires		12.00R20
	Rear axle ratio		5.2
	Maximum Speed		km/h	85
	Maximum Grade ability		%	25
	Minimum Turning Circle		m	19
	Max. Brake Distance(Fully laden,30km/h)		m	9.5
	Material of tank body		Alloy manganese steel
	Volume of water tank		400L
Thickness of tank (mm)			Body Thickness:6 Sealing head Thickness:8
Reducer			German ZF brand
Hydraulic system			German REXROTH brand
Cooling system			China well-known brand
Feeding speed			≥3 m3/min
Running speed			0-14 r/min
Output speed			≥ 2 m3/min
Residue rate			≤1%

Agitator Truck show













Q&A

1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q:Can you customize trucks according to customers' need? A:Yes, product customization service is our speciality.

4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also provide spare parts as long as customers need.

5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15 working days.
