Dongfeng 6X4 Heavy Duty Rubbish Collect Truck 25 Tons Compactor Garbage Truck

The working principle of the garbage /refuse truck is to use the mechanical and electrical integration technology, mainly through the garbage compartment, filling device, push the shovel, hydraulic system and other special equipment, with the machine, electricity, liquid joint automatic control system to achieve garbage dumping, crushing and crush the garbage into the compartment. It has the advantages of convenient garbage collection, high compression ratio and large loading capacity. It has great advantages of sealing, operation, efficiency and safety.
The vehicle is fully sealed, self-compressed, dumping itself and all the sewage flow into the sewage tank, completely solve the secondary pollution problems in the garbage /refuse transport process.

Key components using imported parts, rear hanging flip mechanism or garbage bucket turning mechanism are optional.
In the design and manufacture garbage /refuse trucks, the vehicle chassis, engine and take power are carefully selected. The use of noise-absorbing materials, hydraulic systems and loading agencies through the optimization of design, accuracy and assembly quality, achieve the purpose of reducing vehicle noise.

The use of imported PLC (programmable controller) integrated control, control circuit generated in the PLC, the use of logic circuit to ensure that the operation of the order in accordance with the order, while ensuring interlock between the operating instructions, the external only the line connection, reducing the occurrence of failure ratio, to avoid the accident caused by the accident and improve the reliability; specially setting the emergency brake button can make the garbage filling mechanism in any state or any position to stop, to protect the safety of workers.

Compactor garbage/refuse truck can be made from 3cbm to 20 cbm, 3tons to 25 tons.
Several brands of chassis are available, such as Dongfeng, FAW, JAC, FOTON, SINOTRUK, SHACMAN, ISUZU, etc. 4x2, 4x4, 6x4, 8x4, 8x6 and other special configurations can be customized.

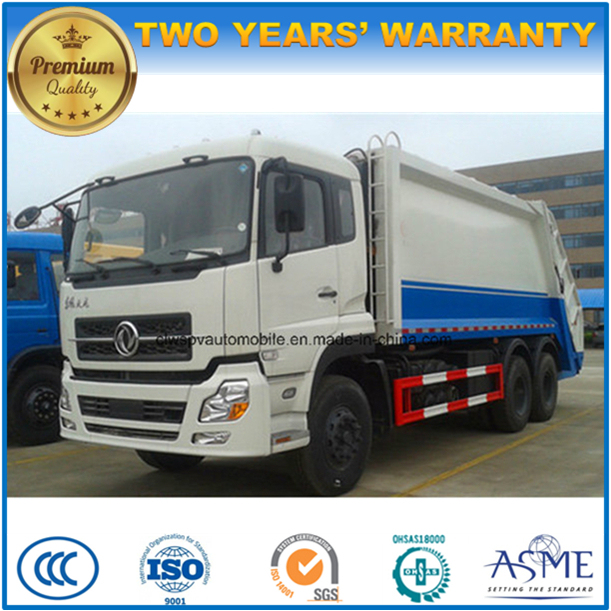

Compactor Garbage Truck show





Various rear configurations show



Specification

Model NO.	CLW5250ZYSD3 refuse truck
Overall dimension(mm)	10350x2500x3400	Wheelbase (mm)	4350+1350
Total mass (kg)	25500	Curb mass (kg)	14870
Chassis model	DFL1250A8	Engine model	ISDe245 40
Engine type	6-cylinder engine	Engine manufactuer	Dongfeng Cummins Engine Co., Ltd
Power (kW)	195	Transmission	8-speed transmission
Displacement (ml)	8900
Drive Wheel	6x4
Tire	10.00R22
Max. Speed	90km/h
Container volume (m3)	18-21
Garbage-filling time(s)	<30
Dump time(s)	<15
Compression ratio	3-4
Compression pressure (t)	13.8
Compressed density (t/m3)	0.9
Configuration	A. hanging dustbin B. refuse hopper C.swing arm garbage bucket

Compress garbage truck for export



Q&A

1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q:Can you customize trucks according to customers' need? A:Yes,product customization service is our speciality.

4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also providespare parts as long as customers need.

5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15

Chengli automobile co.,Ltd covers an area of about 67 hectares, more than 8000 employees, production and sales of various special vehicles more than 300 kinds.
Our company is keeping growing during 15 years. Our sales revenue reached 400 million dollars and exports reached 20 million dollars in 2016.
Our leading varieties include refuel tank truck, LPG tanker,sprinkler, tank truck, garbage truck, suction truck, Sewage Suction Truck, Dump Truck, van, trailer, wrecker, truck cranes, aerial vehicles, coach cars, Bulk Cement Truck, chemical trucks, fire truck, cement mixer, tractor and other eight series of more than 300 varieties of models. Special van, feed truck, LED advertising vehicle, the American school bus and Recreational Vehicle,ect.
We have got five first in the field of special automobile:
1.Sanitation car sales ranked first in the country;
2.Special vehicle production and sales ranked first in the country;
3.The first private enterprise pass the test of the A2, C2 three types of pressure vessel by once;
4.The first private enterprise through the enterprise qualification approval of low-speed truck test by once;
5.The first private enterprise through the new national standard of fire acceptance.

Any interest of garbage truck, pls contact us .

Tel :+86 186 7222 2184
