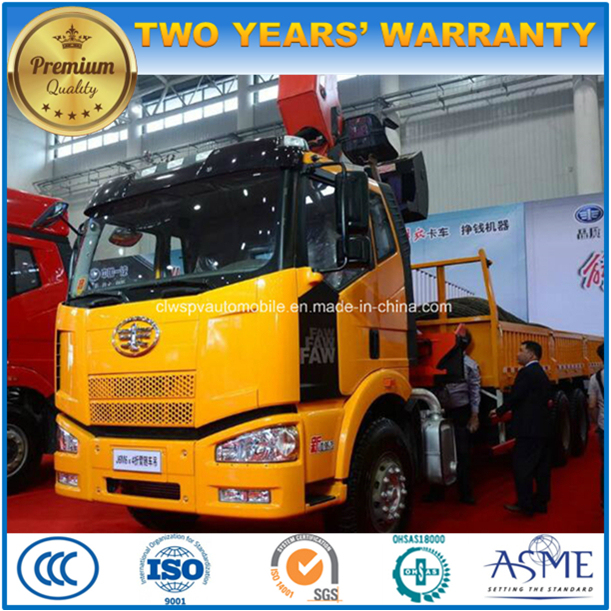

FAW 6*4 Folding Arm Crane Truck Mounted with 6 Tons Crane Price
- USD 25000.42 /Unit
- 1 Unit
- 92 Unit
- 13 days
Product Description
Crane truck series of our company: high power, high speed, good climbing ability, high lifting height, huge operating range.
The use of well-known domestic hydraulic pump system, can achieve rapid lift, efficient, energy saving. The machine has the advantages of flexible, easy operation, efficient work, safe and reliable . Lorry crane truck can be widely used in a variety of loading and unloading, installation of lifting operations, especially for field lifting, rescue operations and in the station, port, warehouse, construction site and other narrow places.
Using the domestic well-known brand crane, optional telescopic straight arm or folding arm crane, and optional two-arm, three-arm, 24-dimensional card sets of pipe joints, high-precision cold drawn tube completely solve the oil spill. High-strength steel plate production makes the lighter weight and greater loading; with the truck lifting truck full hydraulic, full rotation; from the operating radius of the operation; new type of H leg. Crane can be two-way operation, rotation angle: ± 360 degrees, continuous rotation, slewing speed and lifting speed can be adjusted.
There are 2.5 tons, 3.5 tons, 4 tons, 5 tons, 6.3 tons, 7-16 tons of crane can choose, can choose two arm, three arm, four arm, can choose straight arm or folding arm Type crane.
Specification
Optional Crane
well-known crane brands can be chosed:
A.8-ton,4-section foldable arm, lifting height of 13 meters, working radius of 9.8 meters, all rotation.
B.10-ton,4-section straight arm, lifting height of 14 meters, working radius of 12 meters, all rotation.
C.10-ton,4-section foldable arm, lifting height of 13 meters, working radius of 9.75 meters, all rotation.
Truck With Crane & Factory Show
Q&A
Chengli automobile co.,Ltd covers an area of about 67 hectares, more than 8000 employees, production and sales of various special vehicles more than 300 kinds.
Our company is keeping growing during 15 years. Our sales revenue reached 400 million dollars and exports reached 20 million dollars in 2016.
Our leading varieties include refuel tank truck, sprinkler, tank truck, Garbage Truck, suction truck, Sewage Suction Truck, Dump Truck, van, trailer, wrecker, truck cranes, aerial vehicles, coach cars, Bulk Cement Truck, chemical trucks, fire truck, cement mixer, tractor and other eight series of more than 300 a variety of models. Special van, feed truck, LED advertising vehicle, the American school bus and Recreational Vehicle,ect.
We have got five first in the field of special automobile:
1.Sanitation car sales ranked first in the country;
2.Special vehicle production and sales ranked first in the country;
3.The first private enterprise pass the test of the A2, C2 three types of pressure vessel by once;
4.The first private enterprise through the enterprise qualification approval of low-speed truck test by once;
5.The first private enterprise through the new national standard of fire acceptance.
Seeing is believing! Welcome to visit our factory!
We will customize the best trucks for you!
The use of well-known domestic hydraulic pump system, can achieve rapid lift, efficient, energy saving. The machine has the advantages of flexible, easy operation, efficient work, safe and reliable . Lorry crane truck can be widely used in a variety of loading and unloading, installation of lifting operations, especially for field lifting, rescue operations and in the station, port, warehouse, construction site and other narrow places.
Using the domestic well-known brand crane, optional telescopic straight arm or folding arm crane, and optional two-arm, three-arm, 24-dimensional card sets of pipe joints, high-precision cold drawn tube completely solve the oil spill. High-strength steel plate production makes the lighter weight and greater loading; with the truck lifting truck full hydraulic, full rotation; from the operating radius of the operation; new type of H leg. Crane can be two-way operation, rotation angle: ± 360 degrees, continuous rotation, slewing speed and lifting speed can be adjusted.
There are 2.5 tons, 3.5 tons, 4 tons, 5 tons, 6.3 tons, 7-16 tons of crane can choose, can choose two arm, three arm, four arm, can choose straight arm or folding arm Type crane.
Specification
| FAW 6x4 Truck With Crane | |||
| Chassis Model | CA5250JSQP63K1L5T1E4 | ||
| Loading Capacity | kg | 10900 | |
| Gross Vehicle Weight | kg | 24550 | |
| Curb Weight | kg | 14160 | |
| Overall Dimension | mm | 12000×2495×3780 | |
| Cargo body Dimension | mm | 8050×2300×600 | |
| Wheelbase | mm | 5300+1350 | |
| Wheel Track | Front | mm | 1950 |
| Rear | mm | 1847 | |
| Minimum Ground Clearance | mm | 400 | |
| Engine | BF6M1013-26E4R, Turbo ,6-Cylinder, In line | ||
| Power | kW | 195 | |
| Engine manufacturer | China FAW Group Corp. | ||
| Fuel Consumption | L/100Km | 16 | |
| Fuel Tank Capacity | L | 400 | |
| Transmission | Fuller GH-12H | ||
| Fuel type | Diesel | ||
| Steering | FW098, Hydraulic powered | ||
| Tires | 10R22 | ||
| Maximum Speed | km/h | 95 | |
| Maximum Grade ability | % | 28 | |
| Minimum Turning Circle | m | 19 | |
| Max. Brake Distance(Fully laden,30km/h) | m | 9.5 | |
| Swing Angle | o | 360 | |
| Material of cargo body | Q235A carbon steel | ||
well-known crane brands can be chosed:
A.8-ton,4-section foldable arm, lifting height of 13 meters, working radius of 9.8 meters, all rotation.
B.10-ton,4-section straight arm, lifting height of 14 meters, working radius of 12 meters, all rotation.
C.10-ton,4-section foldable arm, lifting height of 13 meters, working radius of 9.75 meters, all rotation.
Truck With Crane & Factory Show
Q&A
| 1.Q: Are you a manufacturer or trading company? A:We are manufacturer.You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China |
| 2.Q: What kind of payment do you accept? A: We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation. |
| 3.Q: Can you customize trucks according to customers' need? A: Yes,product customization service is our speciality. |
| 4.Q:What's your after-sale service? A: We provide technical support for our products. Besides, we also provide spare parts as long as customers need. |
| 5.Q: What's your delivery time? A: It depends on the quantity, usually takes 10-15 business days. |
Chengli automobile co.,Ltd covers an area of about 67 hectares, more than 8000 employees, production and sales of various special vehicles more than 300 kinds.
Our company is keeping growing during 15 years. Our sales revenue reached 400 million dollars and exports reached 20 million dollars in 2016.
Our leading varieties include refuel tank truck, sprinkler, tank truck, Garbage Truck, suction truck, Sewage Suction Truck, Dump Truck, van, trailer, wrecker, truck cranes, aerial vehicles, coach cars, Bulk Cement Truck, chemical trucks, fire truck, cement mixer, tractor and other eight series of more than 300 a variety of models. Special van, feed truck, LED advertising vehicle, the American school bus and Recreational Vehicle,ect.
We have got five first in the field of special automobile:
1.Sanitation car sales ranked first in the country;
2.Special vehicle production and sales ranked first in the country;
3.The first private enterprise pass the test of the A2, C2 three types of pressure vessel by once;
4.The first private enterprise through the enterprise qualification approval of low-speed truck test by once;
5.The first private enterprise through the new national standard of fire acceptance.
Seeing is believing! Welcome to visit our factory!
We will customize the best trucks for you!
