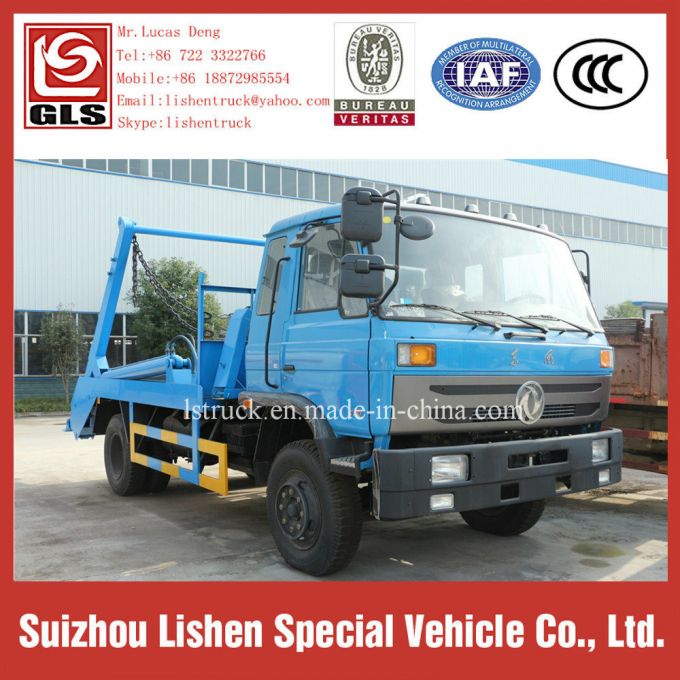

Dongfeng 145 Garbage Transport Vehicle Hydraulic System Swing Arm Garbage Truck

We areaprofessionalmanufacturerin truck area , and we can provide our customers various configuration trucks with different prices.

1. At present Our Truck with Euro 2, Euro 3 and Euro 4 Emission Standards;
Drivemodel:4*2,6*4;
Brand with Dongfeng, JMC,Qingling 1SUZU, JAC, Foton and etc.

2. Cab: Single row OR Single row with sleeper(rated passengers:2-3)
Steeringcontrol:Left Hand Dive/Right Hand Drive

3. Capacity:3CBM-16CBM

4.The truckcompacts the wasteby hydraulically powered mechanism, by the use of hydraulics,the barrel is locked during the overturning process, which is very safe and reliable

Model	SLS5120ZBSE4Swing Arm Garbage Truck
Chassis	EQ1121GKJ2
Engine	ISDe160 40 ,118 KW
Steering	Hydraulic Steering With Power Assistance
No. of Axle	2
Axle Load	4750/7700
Allowable Passangers	3,2
Dimension	7380x2480x3300mm
Wheelbase	3950,4200 mm
F/R Suspension	1250/2180
F/R Tread	1900,1810/1800
Approachangle(°)	30
Departureangle(°)	24
No.of Tires and Specification	4,9.00-20 14PR,9.00R20 14PR
G.V.W	12450kg
Rated Loading Capacity	6455kg
Mass In Working Order	5800kg
Max Speed	90 km/h
No.of Leaf Spring Pieces	8/11+8
Tractions	4*2
Breaking System	Air Braking
Electric System	24 V
Fuel Type	Diesel
Hourse Power	160 hp
Tank Capacity	3-8 M³
Tank Material	Optional,Carbon Steel, Stainless Steel
Application	mainly used for the sanitation department of municipal and large-scale factories and mines carry a variety of waste with simple and convenient collection method.
Basic Compostion	chassis,container,push plate,scraper blade,sliding plate,padding machine,tipping bucket, hydraulic electric system and ect.

Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk Cement Truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck

China Tank Truck Manufacturer.
MOQ: 1unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
