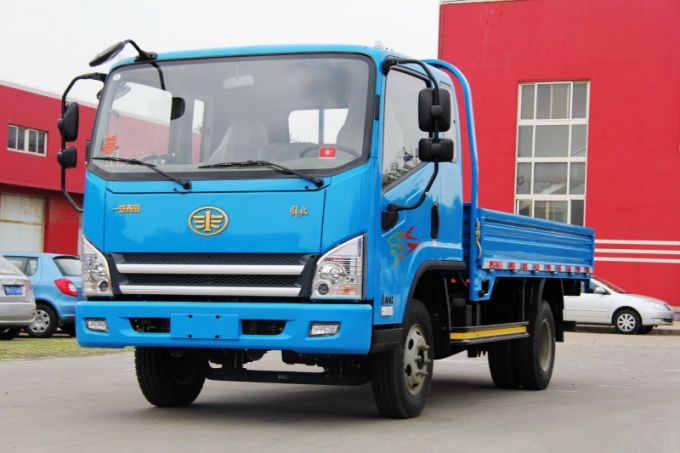

Faw Truck Jiefang 4X2 Lorry Truck

Mass Curb Weight (kg) 2310 Dimensions Overall dimensions of Truck Assembly Length (mm) 6901
Axle Load distribution(kg) Front 1370 Width (mm) 2150
Rear 940 Height (unload)(mm) 2330
Gross Weight Full Load(kg) 3400 Wheel base(mm) 3860
Axle Load distribution(kg) Front 2100 Wheel Track(mm) Front 1650
Rear 1300 Rear 1540
GVW (kg) 7500 Min. Ground Clearance(under rear axle) (mm) 200
Max. Axle Load distribution (kg) Front 2720 Approach Angle (° ) 18
Rear 4780 Departure Angle(° ) 14
Max. Traction weight (kg)...Front Overhang (mm) 1241
Max. GVW of tractor and trailer...Rear Overhang (mm) 1800
Max. Allowed load on fifth-wheel (kg)...Clearance of fifth-wheel from ground(loaded) mm...
Performances Min. Steering Diameter (m) 14.2 Traction pin diam...
Max. Speed (km/h) 108 Engine Model CA498E3-12
Max. Gradeability (%) 24 Displacement(L) 3.168
Parking Brake Grade Angle (%) 18 Max. Output Power kW/(r/min) 90/3200
Direct Shift Min. Stable Speed(km/h) 26 Max. Torque Nm/(r/min) 320/1900~
2100
Direct Shift Accelerate Time (s)
(20-70km/h)
Rated Fuel Consumption g/(kWh)
Sliding Distance(from 50km/h) (m) ≥ 1050 Min. Fuel Consumption g/(kWh) 205
Braking Distance(from 30km/h) (m) ≤ 10 Cab Type Cab-over-engine, all metal closed, integral front tilting angle 44º
Fuel Consumption(l/100km) 11
Fuel Tank Capacity (L) 90 Seats 3
frame Type Side rails, punching and riveted construction Clutch Type Dry type, single plate, diaphragm spring clutch, hydraulic controlled and air aided power operating
Main Rail section 200× 65× 5 (mm)
Auxiliary Rail Section...Driven Plate Dia. φ 300(mm)
Transmission Model WLY5-35 Power Steering Model Integrated power steering
Forward Shifts Ratio i1=5.057, i2=2.609, i3=1.565, i4=1, i5=0.764 Ratio 17.76
Pump Max. Pressure(MPa) 10
Reverse Shift Ratio 5.118
Wheel Alignments Wheel Camber 1° 30' Brake System Rated working air pressure (kPa) 810
Kingpin inclination 7° Driving Brake Dual circuit, air pressure brake
Caster 1° 30' Parking Brake Spring energy storage type
Toe-in(measured onΦ 648 diameter) 2~4(mm) Auxiliary Brake Exhaust Brake

Rear Axle Type 1058 single reduction Electrical System Type Single line, negative earthed
Reduction Ratio 5.571 Voltage 24V
Generator 1500W
Differential Inter-axle differential lock Battery(V/Ah) 12/100
Body Measurement(mm) (optional)5170*2050*400
Wheel Rim 6. *16
Tyre Model 7.50R16-14
Air pressure(kPa) 660

Mass

Curb Weight (kg)

2310

Dimensions

Overall dimensions of Truck Assembly

Length (mm)

6901

Axle Load distribution(kg)

Front

1370

Width (mm)

2150

Rear

940

Height (unload)(mm)

2330

Gross Weight Full Load(kg)

3400

Wheel base(mm)

3860

Axle Load distribution(kg)

Front

2100

Wheel Track(mm)

Front

1650

Rear

1300

Rear

1540

GVW (kg)

7500

Min. Ground Clearance(under rear axle) (mm)

200

Max. Axle Load distribution (kg)

Front

2720

Approach Angle (°)

18

Rear

4780

Departure Angle(°)

14

Max. traction weight (kg)

^^

Front Overhang (mm)

1241

Max. GVW of tractor and trailer

^^

Rear Overhang (mm)

1800

Max. allowed load on fifth-wheel (kg)

^^

Clearance of fifth-wheel from ground(loaded) mm

^^

Performances

Min. Steering Diameter (m)

14.2

Traction pin diam

^^

Max. Speed (km/h)

108

Engine

Model

CA498E3-12

Max. Gradeability (%)

24

Displacement(L)

3.168

Parking Brake Grade Angle (%)

18

Max. Output Power kW/(r/min)

90/3200

Direct Shift Min. Stable Speed(km/h)

26

Max. Torque Nm/(r/min)

320/1900~ 2100

Direct Shift Accelerate Time (s) (20-70km/h)

Rated Fuel Consumption g/(kW.h)

Sliding Distance(from 50km/h) (m)

≥1050

Min. Fuel Consumption g/(kW.h)

205

Braking Distance(from 30km/h) (m)

≤10

Cab

Type

Cab-over-engine, all metal closed, integral front tilting angle 44º

Fuel Consumption(l/100km)

11

Fuel Tank Capacity (L)

90

Seats

3

frame

Type

Side rails, punching and riveted construction

Clutch

Type

Dry type, single plate, diaphragm spring clutch, hydraulic controlled and air aided power operating

Main Rail section

200×65×5 (mm)

Auxiliary Rail Section

^^

Driven Plate Dia.

φ300(mm)

Transmission

Model

WLY5-35

Power Steering

Model

Integrated power steering

Forward Shifts Ratio

i1=5.057, i2=2.609,i3=1.565, i4=1, i5=0.764

Ratio

17.76

Pump Max. pressure(MPa)

10

Reverse Shift Ratio

5.118

Wheel Alignments

Wheel Camber

1°30'

Brake System

Rated working air pressure (kPa)

810

Kingpin inclination

7°

Driving Brake

Dual circuit, air pressure brake

Caster

1°30'

Parking Brake

Spring energy storage type

Toe-in(measured onΦ648 diameter)

2~4(mm)

Auxiliary Brake

Exhaust Brake

Rear Axle

Type

1058 single reduction

Electrical System

Type

Single line, negative earthed

Reduction Ratio

5.571

Voltage

24V

Generator

1500W

differential

Inter-axle differential lock

Battery(V/Ah)

12/100

Body

Measurement(mm)

(optional)5170*2050*400

Wheel

Rim

6.*16

Tyre

Model

7.50R16-14

Air pressure(kPa)

660
