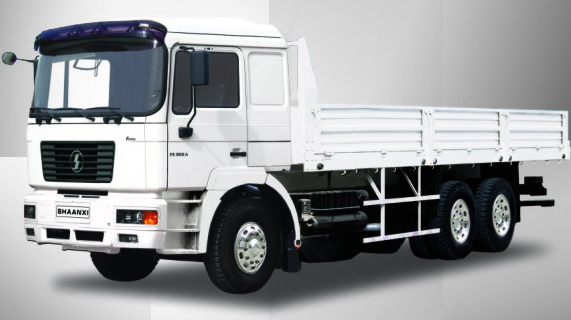

Shacman 6 X 4 Lorry Cargo Truck Cummins Engine

Model: SX1257NM564
Traction type: 6x4
Driving type: LHD (RHD can be optioned)
Cabin: MAN cab extra lengthened extra width normal-roof

Engine brand: Steyr (Weichai)
Engine model: WD
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 375HP@2200rpm
Max torque: 1460NM@1300-1650rpm
Bore/Stroke(mm): 126/155
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 195g/Kwh
Pump: P12
Gear box: Fuller 12 speeds (9JS119)
Clutch: 430 diaphragm type
Steering: ZF technology

Front axle: Steyr front axle
Rear axle: Steyr strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
frame: 300mmx80mmx 8mm (inner: 275mm*70mm*5 mm )
Tyre: 12.00-20 (rim: 8.5-20)
Fuel tank capacity (L): 380
Max. Speed (km/h): 92
Max. Gradeability(%): 28
Kerb. Mass: 11390 kg
Total mass: 25000kg
Wheel base (mm): 5625+1350
Front overhang (mm): 1525
Rear overhang (mm): 3339
Front track (mm): 1939
Rear track (mm): 1800
Approach angle: 16 degree
Departure angle: 16 degree
Dimension (mm): 11839x2490x3210

Body size: 9010mm*2326mm*800mm

engine	weichai,cummins
export experience	10 years
sale	directly cooperate with factory
