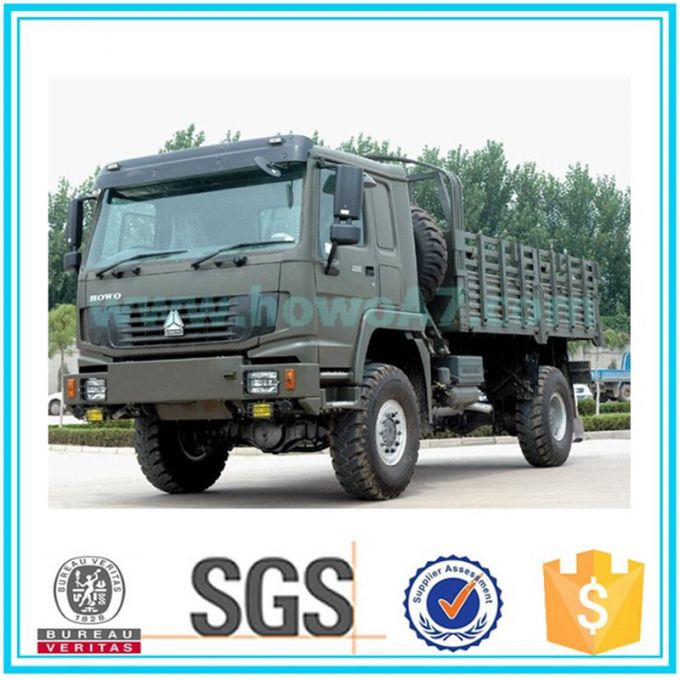

Sinotruk 20 Tons off Road 4X4 Cargo Truck Lorry Truck Army Truck

Sinotruk 20 Tons off Road 4X4 Cargo truck Lorry Truck Army Truck
Packaging &Delivery

Packaging Details:	nude packing or according to the customers
Delivery Detail:	15~20 days

10 tons SINOTRUK off road 4x4 cargo truck, lorry, light truck military truck
1.China famous Sinotruk brand
2.Euro 3emission standard
3.Load: 10Ton
4.High quality and competitive price
5.Best afetr-sales


Product Description

Truck model			ZZ2167M4327C1/ L2WA		ZZ2167M4627C1/ L2WA		ZZ2167M5227C1/ L2WA		ZZ3167M4327C1/ L2WA
Sales code			HW7/266/043/ 4 x4W		HW7/266/046/ 4 x4W		HW7/266/N52/ 4x4W		HW7/266/K43/ 4 x4W
Dimension (length xwidth xheight) (mm)			7768x 2496x3110		8268x2496x3110		9160x2496x3110		7278 x2496 x3110
Gross weight (kg)			16000		16000		16000		16000
Total weight(kg)			7950		8000		7830		7700
Max speed(km/h)			76		76		76		76
Wheelbase(mm)			4300		4600		5200		4300
Engine	Mode		WD615. 92C
	Rated engine power (KW/r/min)		198/1900
	Max. torque (N. m/r/min)		1190/1200 ~1500
Clutch			430mm C-type diaphragm spring clutch
Gearbox			HW14710( Option ZF5S-150GP)
Drive axle			steel front steerting drive axle with planetary wheel reduction, ST16 double drive axle Speed ratio 5.73
Steering			ZF8098
Transfer case		Mode	LF160 sub actuator (with differential/ Chongqing North Benz)
		High-grade /low-grade ratio	0 .89/1.536
Brake type			service braking. dua circuit compressed air brake. parking brake(hand brake) . spring energy air cut brake
Cab			HOW076 cab
Electric system			HOWO electric system.24V.negative grounded
Tire			12 00-20(Options are 11.00-20, 11. 00R20. 12.00R20. 14. 00-20)
Fuel tank(L)			400
Other models with same wheelbase			ZZ2167M4327C1/ M2WA(290PS)		ZZ2167M4627C1/ M2WA(290PS)		ZZ2167M5227C1/ M2WA(290PS)		ZZ3167M4327C1/ M2WA(290PS)

Dimension	Unit	QY50K-II
Overall length	mm	13750
Overall width	mm	2800
Overall height	mm	3520
Total weight in travel	kg	41000
Front axle load	kg	15000
Rear axle load	kg	26000
Engine model		WD615.334(domestic III)
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17
Departure angle	°	11
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Max. rated total lifting capacity	t	50
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN.m	1764
base boom	m	11.3
Fully extended boom	m	42.7
Fully extended boom+ jib	m	57.7
Longitudinal outrigger span	m	5.91
Lateral outrigger span	m	6.9
Boom luffing time	s	88
Boom full extension time	s	180
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥110
Max. speed of aux. winch (single rope) (no load)	m/min	≥110

If you have any question, please kindly contact us. Also hoping you can come to visit our factory.
