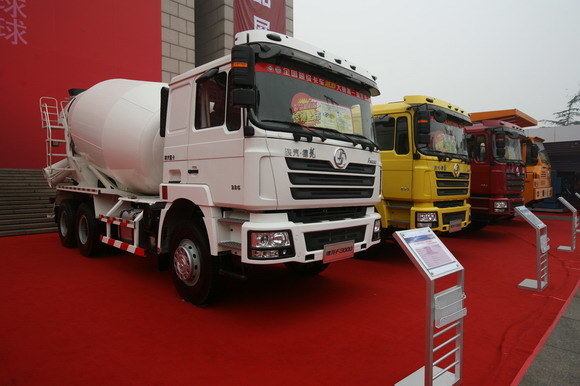

Shacman Dlong 8 Cbm Concrete Mixer Truck

Shacman Dlong 8Cbm Concrete Mixer Truck for sale

Specification:

Engine: Weichai Model: WP10.336 EURIII
Transmission (gear box): Fuller 12 speeds (12JS160T)
Clutch: D430 Diaphragm type
Steering: ZF technology

Front axle: MAN technology 7.5 ton front axle
Rear axle: 13T Steyr strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)

Fuel tank: 400L Aluminum
Tire: 12.00R20 radial tire No. Tyre: 10+1 spare
Approach angle(° ): 20 Departure angle(° ): 19
Front overhang(mm): 1525 Rear overhang(mm): 2000
Max. Speed(km/h): 92 Kerb mass: 13240kg

Wheel base(mm): 3625+1350 Dimension(mm): 9130*2500*3900

Body(mixer, drum):
Max. Diameter: 2305mm
Volume: 13.1CBM Capacity: 8CBM Slope: 13.5 Rotating speed: 0-18 r/min
Water Tank: 450L Discharged remain ratio: <0.2%
Hydraulic pump and motor: EATON (AMERICA)
Decelerator: P68
Features:
L Crank chute operation
L High pressure water jets, with air pressure supply
L Rod manipulation
L Radiator made in China
