60 Ton Tri-Axles Side Dumper Semitrailer / Side Dump Semitrailer
- USD 20000.00 /Unit
- 1 Unit
- 97 Unit
- 20 days
Product Description

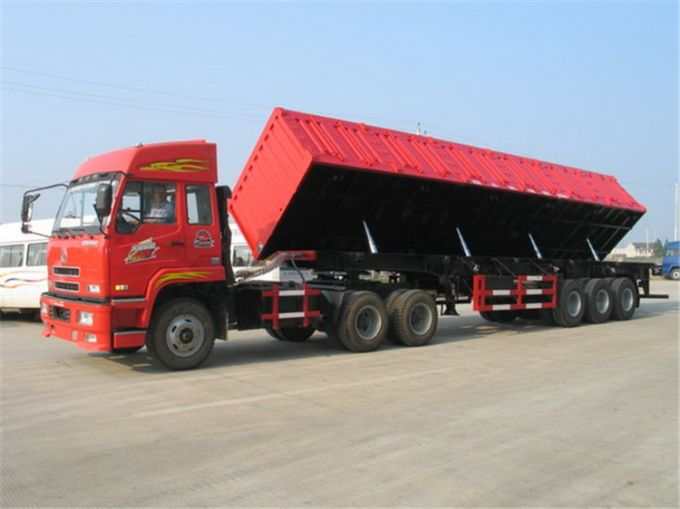

60t Tri-Axles Side Dumper Semitrailer / Side Dump semitrailer
Mainly suitable for the transportation of large mechanical devices,the large-scale cargo,the highway construction equipments,the large tanks,the extra-high containers,all kinds of steel product.
The mainbeam is the 16Mn high-tensile steel welded and whole penetration type crossbeam.It's reasonable designed,well balance to the frame's intensity,rigidity and toughness ,strong bearing,no permanent distortion etc.
This vehicle adopt the large gooseneck structure ,low loading floor,the upper part provide large loading space,at the same time,after loading,the center of gravity is low,which makes the vehicle very safe.
The axle,tyre and other accessorier are the well-known products which produced by the domestic and foreign professional Manufacturer.
Mainly suitable for the transportation of large mechanical devices,the large-scale cargo,the highway construction equipments,the large tanks,the extra-high containers,all kinds of steel product.
The mainbeam is the 16Mn high-tensile steel welded and whole penetration type crossbeam.It's reasonable designed,well balance to the frame's intensity,rigidity and toughness ,strong bearing,no permanent distortion etc.
This vehicle adopt the large gooseneck structure ,low loading floor,the upper part provide large loading space,at the same time,after loading,the center of gravity is low,which makes the vehicle very safe.
The axle,tyre and other accessorier are the well-known products which produced by the domestic and foreign professional Manufacturer.
| TareWeight | 10.5T |
| volume | 36m3 |
| Pay-load | 50T |
| Wheelbase | 1310(mm) |
| Tyre | 385/ 12R 22.5 / 11.00R 20 |
| Tyrequantity | 6 /12 +1 spare |
| Axlebrand | FUWA/ BPW optional |
| Axle | 3 |
| Axle-load | 13Ton |
| Hydraulic | Hyva |
| KingPin | 50#90#changeable |
| LandingLeg | 28tonJOST |
| Suspension | AirSuspension:Wabco |
| Front/RearOverhang | 1950mm |
| OutsideDimensions(LxWxH) | 10X2.5X3.7M |
| MaterialoftheMainBeam | T700hightensilesteel,yieldstrength:800MPA. Side4mm,Bottom6mm |
| BrakeSystem | DuallinebrakingsystemWithAutomaticAirChambers |
| BrakeAirChamber | Wabco |
| Electrical | 24V,7coresocket,lightsaccordingtoEuropeanstandards. |
| Color | Anycolorwillbeavailable |
| Accessory | Onetoolingboxwithasetofstandardtrailertool |
| Sparetirecarrier | 1set |
