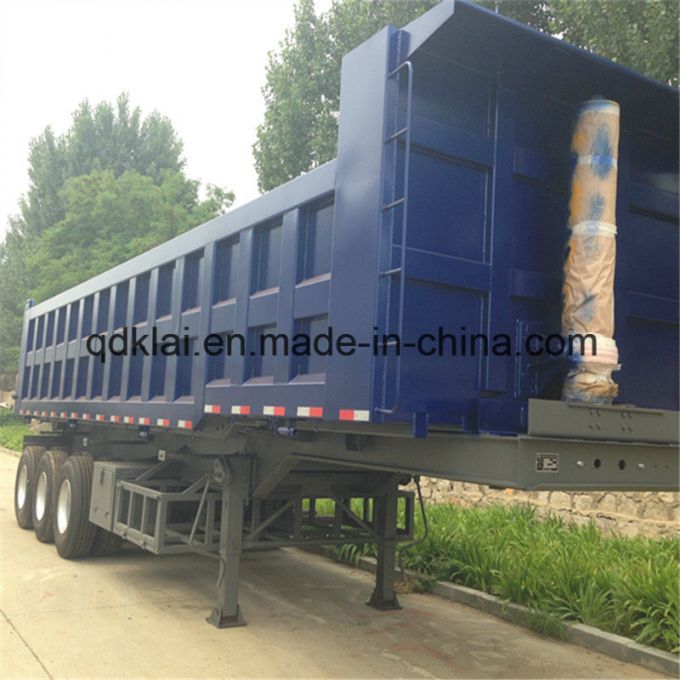

Brand New 3 Axles Heavy Duty Tipper 50 Tons Tipping Trailer Sale
- USD 15000.30 /Unit
- 1 Unit
- 68 Unit
- 10 days
Product Description
Type: Tipping trailer
Model: ST9400
Brand: LUFENG
High quality and good performance.
Timely delivery.
Model: ST9400
Brand: LUFENG
High quality and good performance.
Timely delivery.
| Rear Tipping Trailer I. DIMENSIONS | |||
| Overall Dimension | Length(mm) | 10670 | |
| Width(mm) | 2500 | ||
| Height(mm) | 3500 | ||
| Tare Weight(kg) | 13000 | ||
| Payload(kg) | 72000 | ||
| Quantity of Axle | 3 | ||
| Body thickness (mm) | Floor 12mm, side 8mm | ||
| Wheelbase(mm) | 6800+1305+1305 | ||
| Wheel Track(mm) | 1840/1840/1840 | ||
| Rear Overhang(mm) | 1690 | ||
| Departure Angle(°) | 17 | ||
| Leaf Spring | 11 | ||
| Tyre | 12.00R20 radial tyre | ||
| Quantity of Tyre | 12 | ||
| II. STANDARD SPECIFICATION | |||
| NO. | Products | Technical Specification, Brand, etc | |
| 1 | Main frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm , Upper Flange thickness: 18mm; Under Flange thickness: 18mm;Ventral Flange thickness: 8+8mm | |
| 2 | Axle | FUWA 13T | |
| 3 | Landing Gear | 28T capacity, gear outside. | |
| 4 | Braking System | Pneumatic | |
| 5 | Air Chamber | 2 pcs double type ,2 pcs single type | |
| 6 | Leaf Spring | 11 leaves | |
| 7 | Kingpin | 3.5" welding type (90#) | |
| 8 | Electrical System | 24V | |
| 9 | Tyre | 12.00R20 - 12pcs | |
| 10 | Mud Guard | Reinforce Plastic Mud Guard | |
| 11 | Tool Box | with | |
