Factory Sale 3 Axle Storehouse Trailer Warehouse Semi-Trailer with Gooseneck

The specification of 40ft container loading trailer 3axle storehouse semi trailer for sale. Factory sale 3axle storehouse trailer Warehouse Semi-Trailer with Gooseneck

Loaded by Bulk ship, 3units put into one package.

Or Loaded by container ship. 2units put into one 40HQ container.

40ft container loading trailer 3axle storehouse semi trailer for sale

DIMENSIONS
TareWeight	9900kg
OverallLength	12400mm
OverallWidth	2480mm
Payload	45000kg

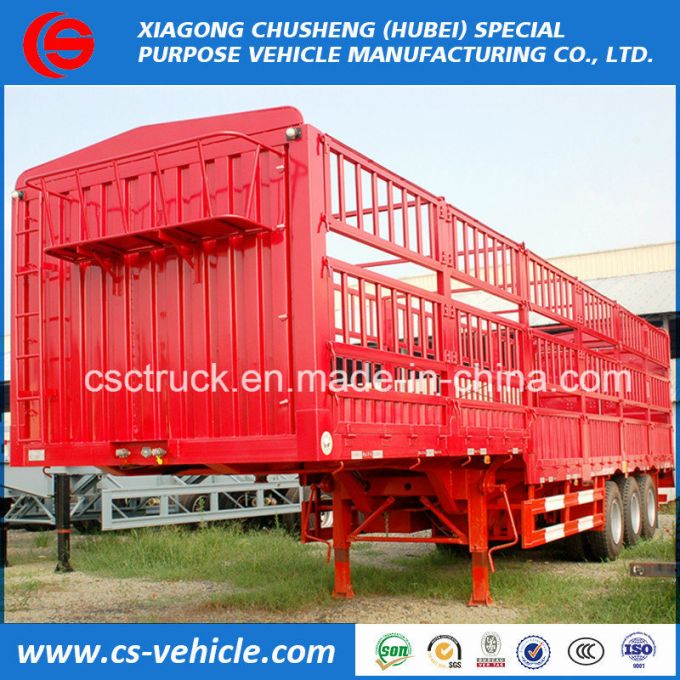

Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam& Chassis	Heavy duty and extra durability designed Ibeam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Middle Flange 8mm,Height 600mm, Bottom Flange 18mm,width 140mm.
Axle	3 axles
	HJ Brand 13 ton
Suspension	German Style Heavy duty mechanical suspension
Floor	3mm checker plate
Leaf Spring	13 piece Leaf spring for heavy loading
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.0-22.5 wheel rim ,13 pieces
Tire	12R22.5 tire with one spare tire, 13 pieces
Twist Lock	12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including acarrier
Braking System	WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint
Accessories	One standard tool box
