40FT Container 3 Axle Side Wall Semi Trailer
- Price can be negotiated
- 1 Unit
- 94 Unit
- 21 days
Product Description
40FT Container 3 axle wall side semi trailer
| DIMENSIONS | ||
| Tare Weight | 8000 kg | |
| Overall Length | 12500mm | |
| Overall Width | 2600mm | |
| Payload | 45000kg | |
| SPECIFICATIONS | ||
| I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |
| Wall Board | 1000 mm , removable | |
| Axle | 3 axles | |
| L1 Brand 13 ton | ||
| Suspension | Heavy duty mechanical suspension | |
| Floor | 3mm checker plate | |
| Leaf Spring | 10 piece Leaf spring for heavy loading | |
| King Pin | JOST brand 2" Bolt-in King Pin | |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| Wheel Rim | 9.0-22.5 wheel rim ,13 pieces (With one spare) | |
| Tire | 12R22.5 tire with one spare tire, 13 pieces (With one spare) | |
| Spare Tire | One sets of spare tire including a carrier | |
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |

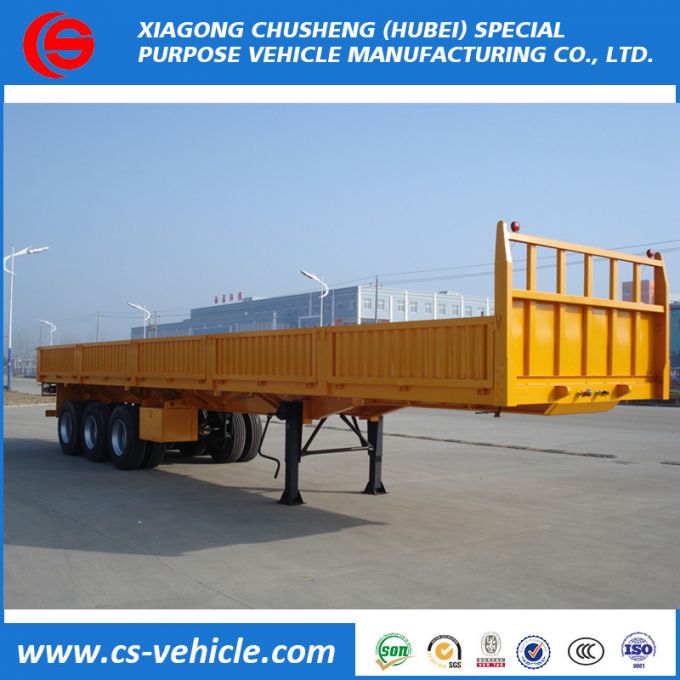

Product Images
-
