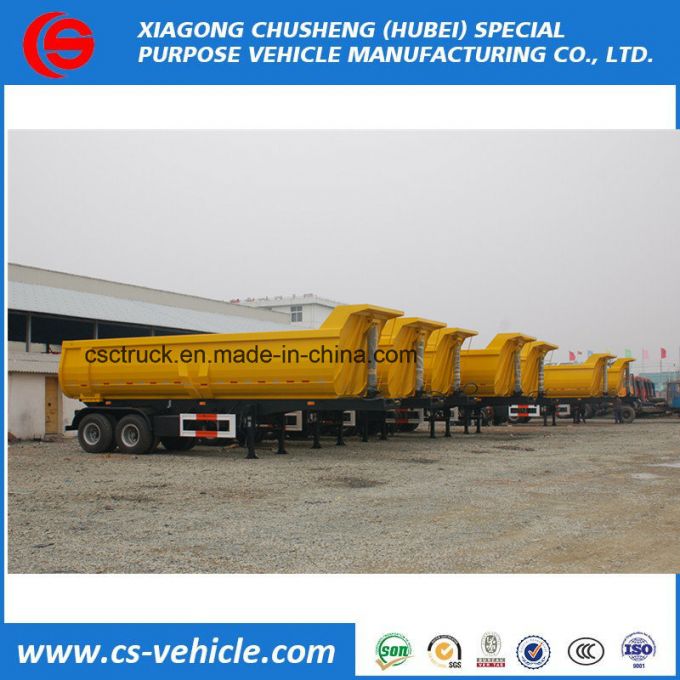

Good Sale U-Shape 2 Axle 16m3 Tipper Semi Trailer
- USD 18000.20 /Unit
- 1 Unit
- 18 Unit
- 21 days
Dump body size :7500mmx2300mmx1200mm
Hydraulic System: HYVA
King Pin: JOST
Landing gear: JOST
| DIMENSIONS | |||||
| Tare Weight | 10000kgs | ||||
| Payload | 35000KGS | ||||
| Overall Length | 10800mm | ||||
| Overall Width | 2465mm | ||||
| Dump body size | 7500mmx2300mmx1200mm | ||||
| DUMPER BODY | |||||
| Volume | 16M3 | ||||
| Side Wall | 8mm thickness, Made by Q345 High tensile strength steel. | ||||
| Front Wall and floor | 10mm thickness, Made by Q345 High tensile strength steel. | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||||
| Axle | 2axles | ||||
| FUWA Brand 13ton | |||||
| Hydraulic System | One set of HYVA Brand cylinder. (Holland brand) | ||||
| Suspension | German design mechanical suspension | ||||
| Leaf Spring | 13-piece leaf spring. 11x100 | ||||
| King Pin | JOST brand 2" Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 9.00R22.5wheel rim, 9pieces | ||||
| Tyre | 11R22.5 tubeless tire with one spare tire, 9pieces | ||||
| Spare Tire | One set of spare tire including a carrier | ||||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||
| Accessories | One standard tool box | ||||
1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van truck, Sweeper Truck, Truck with Crane, Fire Fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
