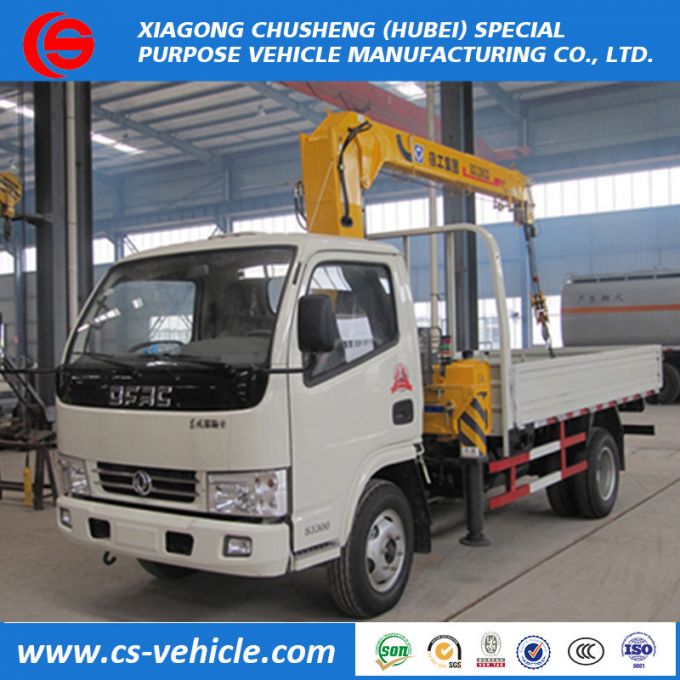

Dongfeng 4X2 6-8tons Flatbed Truck Mounted Crane Towing Trucks Price

Dongfeng 4X2 6-8tons Flatbed Truck Mounted Crane Towing Trucks price

I.Main specifications for 6.3tons crane
Total weight(Kg)		11950			Driving type		4 x 2
Payload (Kg)		4505			Overall dimension (mm)		7650×2500×3550
Curb weight(Kg)		7250			Box internal dimension(mm)		4450×2294×550
cab seats (man)		2			Front/Rear Suspension(mm)		1320/2130
Approach/departure angle (°)		22/10			Wheelbase(mm)		4700
Number of axles		2			Max speed(Km/h)		90
Axle load(Kg)		3400/8550			Tire specification		8.25-20, 7 pieces
Engine		170hp			Transmission		Manual,6 forward&1 reverse direct drive transmission
II.Crane specification
Crane model			SQ6.3SK2Q			Crane brand			"XCMG"
Crane weight(kg)			2160			Max lifting weight(kg)			6300
Max. Lifting moment(T.M)			15.7			Recommended power(kw)			20
Max. Oil Flow of Hydraulic System(L/min)			40
Max. Pressure of Hydraulic System(MPA)			20
Oil Tank Capacity(L)			90
Installation Space(mm)			900
Rotation Angle(°)			360°all rotation
Working Radius(m)	Arm Extension(m)/Max. Lifted Load(kg)
	4.02			6.37				8.72
2.50	6300			3000				1900
3.00	3870			3000				1900
3.50	3650			2750				1900
4.00				2480				1880
4.50				2180				1860
5.00				1920				1840
5.50				1770				1680
6.00				1680				1520
6.50								1400
7.00								1350
7.50								1290
8.00								1250
8.50								1200

Advantages For Truck Mounted Crane Towing Trucks
1. Heavy duty truck chassis
2. Reinforced body structure with proven telescopic tipping gear
3. Combination of ride comfort and power
4. Key pressure point reinforced cargo body
5. Robust powertrain can help you tackle any challange at the construction site
6. Stable and reliable under-body tipping device ensures low-gravity hoisting

Detailed pics for Truck Mounted Crane Towing Trucks
