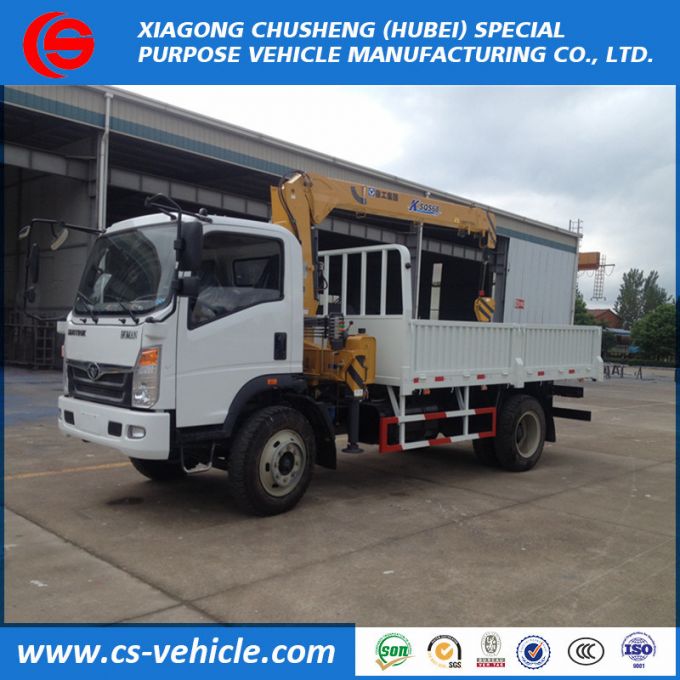

Sintruck Homan 6 Wheels 8tons Truck with Crane 3tons
- USD 21800.90 /Unit
- 1 Unit
- 30 Unit
- 23 days
Model | Sinotruk HOWO 4*2 Truck with 5 tons crane | ||
Drive type | 4*2, New condition, Left hand drive | ||
Vehicle Main Dimensions | (L x W x H)mm | 7200×2270×3150 | |
Wheel base (mm) | 3800 | ||
Track front/rear mm | 1160/2035 | ||
F/R Axle-Load | 2700/5500 kg, | ||
Approach/departure angle | 20/14 | ||
Weight in KGS | Curb Weight | 6570 kg | |
GVW | 11570 kg | ||
Max. driving speed(km/h) | 95 | ||
Engine | Brand | YUNNEI ENGINE | |
Model | YN38PE-1 | ||
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
Horse Power(HP) | 116 | ||
Emission standard | Euro II | ||
Gearbox | WLY6T46; 6 forwards& 1 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Tire | 8.25R16, 7 pc including 1 spare tire | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | power steering, hydraulic steering with power assistance | ||
Equipment for Crane Mounted Parts | |||
Brand | Chinese famous brand, NO.1 brand for Crane in China. | ||
Working Platform | 360°turning(left or right), H-shape legs 360° | ||
Cargo Box | 4850*2150*550mm | ||
Material | Q235 Carbon steel | ||
Extendable boom section | 2/3 | ||
Boom Type | Straight | ||
Lifting Max. Weight | 5000kg | ||
Lifting Max. Height | 11m | ||
Equipment | Using the H type support leg,,Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability. The crane using the5ton fold-able boom. | ||
Delivery time | 40 days after receiving the payment |
about our company:
1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is afamous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van truck, Sweeper Truck, Truck with Crane, Fire Fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.Our factory view:
Our products:
Our main products:
1.Water Truck2.Insulation Truck and Milk Truck 3.Sewage Suction Truck4.Garbage Truck
5.Manlift Truck/Aerial Platform Truck6.Truck with Crane 7.Fuel Truck/8.Chemical Truck
9.Bulk Cement Truck10.Concrete Mixer Truck11.Fire Truck12.Dump Truck
13.Van Truck/Refrigerated Truck, 14.Wrecker/Tow Truck, 15.Flatbed Truck/Low Bed
16.Tractor,17.LPG Truck; 18.Trailers
